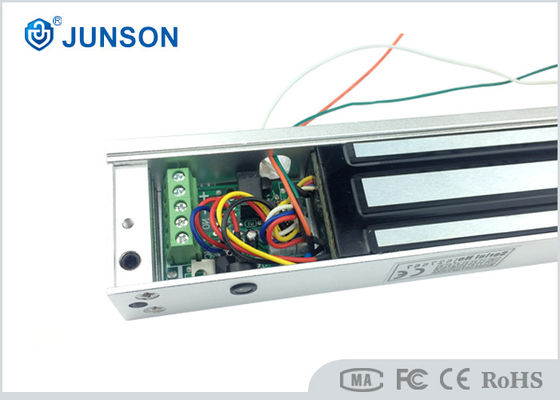

600lbs Commercial Magnetic Door Locks , Single Door Magnetic with Door Sensor-JS-280SLD

Product Description

600lbs Commercial Magnetic Door Locks , Single Door Magnetic with Door Sensor-JS-280SLD

Features of 600lbs Commercial Magnetic Door Locks:

• Installation type: hanging mounted/surface mounted
• Operating: fail-safe and locked when energized
• Unlocking way: unlock when power-off
• Door type: single door
• Suitable for wooden, metal, glass, stainless steel and fireproof doors
• Wiring: PC board mounted terminal block connections
• Bracket is optional, assembled on hollow door and glass doors
• Made more secure, lock body adopts two screws on each side
• Can be used with access control system, building intercom and fire
• No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
• Three different size magnets available
• Single and double units
• Range of Z & L brackets

Specifications of 600lbs Commercial Magnetic Door Locks:

Descriptions of 600lbs Commercial Magnetic Door Locks:

1.   Fail safe, Power to lock

2.   Collinear Load Test 280kg, 600pounds

3.   Dual Voltage 12 or 24 VDC(optional)

4.   The Standard Voltage is 12VDC when Finished

5.   MOV Provides Reverse Current Protection

6.   Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

7.   LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)

8.   High Strength Material(kasolite steel), Anodized Aluminum Housing

9.   Design with no Mechanical Bolt

10.  Increase the holding Force, Dual Insulative Hosing

The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.

Junson magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
