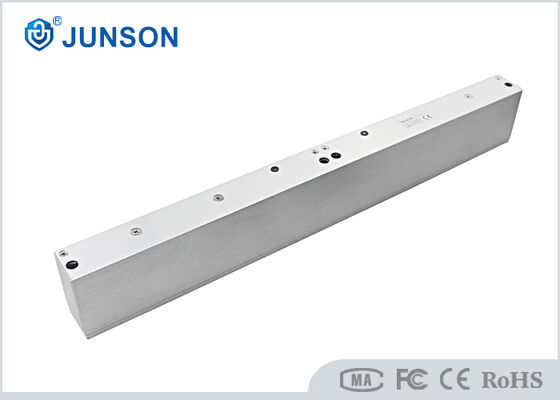

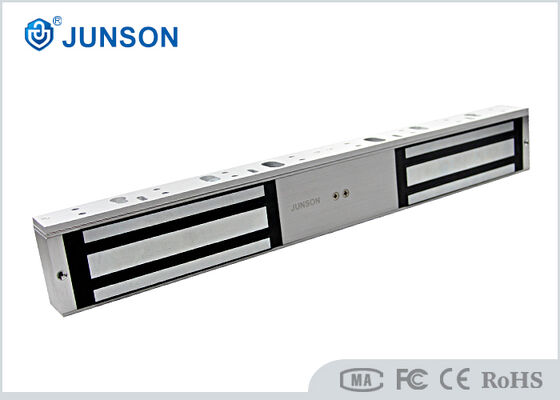

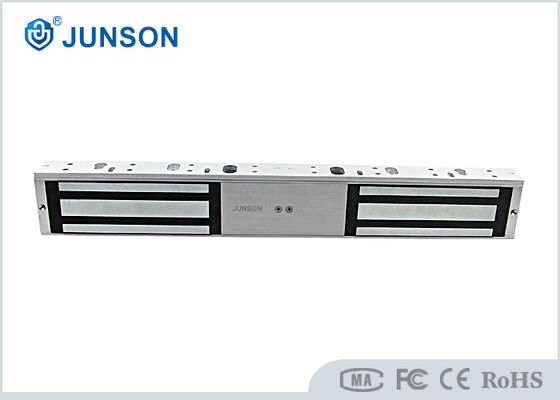

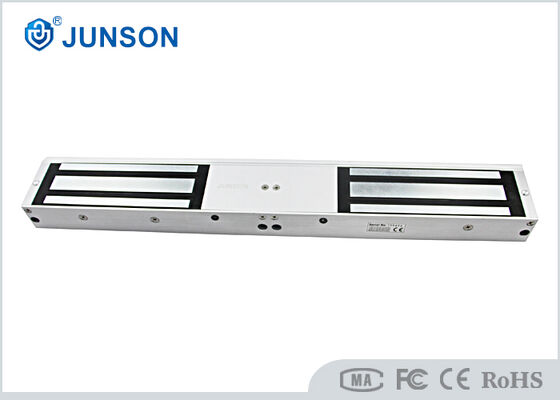

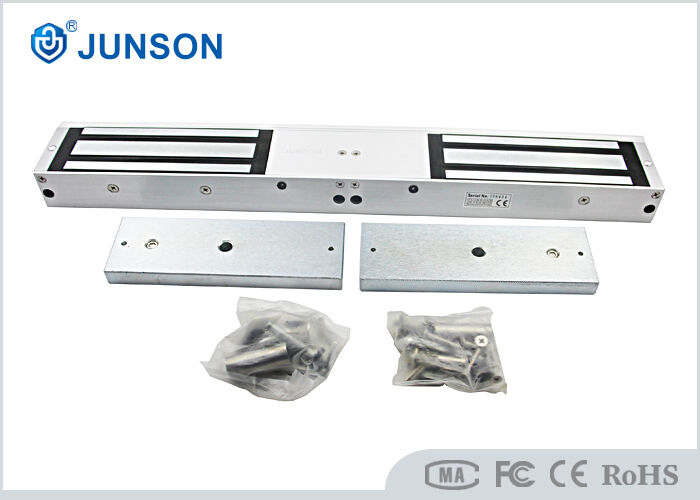

JS-500D 1200lbs High-Strength Electromagnetic Lock with Signal Output
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | JS-500D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Brand: | JUNSON | Armature Plate Finish: | Zinc |
|---|---|---|---|
| Surface Finishing: | Anodized Aluminum | Application: | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Holding Force: | 500kg X 2 (1,200lbs X 2) | Feature: | Fail Safe |
| Current Draw: | 12V / 400mA, 24V / 200mA | Voltage: | 12/24V DC+10% |
Product Description
JS-500D 1200lbs Double Door Electromagnetic Lock with Signal Output
Specifications of 1200lbs Double Door Electromagnetic Lock
| Parameter | Specification |
|---|---|
| Model | JS-500D |
| Lock Type | Double Door Electromagnetic Lock |
| Holding Force | 600lbs × 2 / 1200lbs Total |
| Lock Dimensions | 536 × 72 × 42 mm |
| Armature Plate Dimensions | 185 × 60 × 13 mm |
| Operating Voltage | 12V / 24V DC |
| Current Draw | 400mA @ 12V / 200mA @ 24V |
| Compatible Brackets | JS-280U, JS-280ZL, JS-280L |
| Signal Output | Dry Contact, NO / NC / COM |
| Surface Temperature | ≤20°C |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 0–90% RH (Non-condensing) |
| Housing & Armature Finish | Zinc Alloy |
| Weight | 4 kg |
| Standard Packing | 10 pcs/carton |
| Carton Size | 35 × 30 × 16 cm |
Features of 1200lbs Double Door Electromagnetic Lock
- 1200lbs Total Holding Force: Provides 600lbs holding force for each door in a double-door configuration.
- Fail-Safe Design: Unlocks automatically when power is switched off.
- Dual Voltage: Supports both 12V DC and 24V DC operation.
- High-Strength Housing: Durable aluminum alloy housing with anodized surface treatment.
- MOV Surge Protection: Helps protect the electronic circuit from voltage fluctuations.
- No Mechanical Bolt: Minimizes mechanical wear and ensures reliable operation.
- No Residual Magnetism: Enables smooth and immediate door release.
- LED Status Indicator: Clearly shows the lock operating status.
- Door Status Monitoring: NO/NC/COM signal output for access control integration.
- Dual Insulated Housing: Enhances structural strength and electrical safety.
- Wide Door Compatibility: Suitable for wooden, glass, metal, and fire-rated doors.
Description
The JS-500D 1200lbs Double Door Electromagnetic Lock is designed for double-door access control applications, providing 600lbs holding force per lock and 1200lbs total holding force. Its high-strength construction, fail-safe operation, and door status monitoring make it suitable for commercial and security applications requiring reliable double-door protection.
About JUNSON Electromagnetic Locks
An electromagnetic lock (magnetic lock) works on the same basic principle as an electromagnet. When electrical current passes through the silicon steel core, a strong magnetic field is generated, creating powerful attraction between the lock and the armature plate. This allows the door to be securely locked with efficient power consumption.
JUNSON electromagnetic locks are manufactured using advanced production equipment and precision manufacturing processes. Our optimized magnetic structure and high-quality materials provide strong holding force, excellent surface corrosion resistance, and reliable long-term performance.
With products exported to more than 60 countries and regions worldwide, JUNSON magnetic locks are widely used in airports, metro stations, banks, government facilities, intelligent buildings, residential communities, and other security-sensitive environments.
With a focus on quality, reliability, and innovation, JUNSON provides professional electromagnetic locking solutions for residential, commercial, industrial, and access control applications.
JUNSON Magnetic Lock Advantages
- Strong and stable electromagnetic holding force
- High-quality silicon steel magnetic core
- Excellent corrosion and oxidation resistance
- Advanced manufacturing and quality control
- Reliable long-term performance
- Suitable for a wide range of access control applications
- Exported to more than 60 countries and regions
- Professional OEM/ODM solutions available
FAQ
Q: What payment methods do you accept?
A: We accept a variety of payment methods, including T/T, PayPal, Western Union. Please contact us for the available options for your order.
Q: How much does shipping cost to my country?
A: Shipping costs depend on the destination, order quantity, package dimensions, and shipping method. Please provide your delivery address and required quantity, and we will check the shipping cost for you.
Q: Will I receive a tracking number?
A: Yes. We provide a tracking number for orders shipped by trackable delivery services, allowing you to monitor the shipment status online.
Q: Does the product come with retail packaging?
A: Packaging details are listed on the corresponding product page. Customized retail packaging and OEM packaging are also available for qualifying orders.
Q: Do you offer wholesale pricing for resellers?
A: Yes. We welcome resellers, distributors, system integrators, and project buyers. For bulk orders, please contact us with the required quantity and product model. We will provide competitive wholesale pricing based on your order volume.
Quality Guarantee
At JUNSON, we are committed to delivering reliable products and professional after-sales support. All products undergo strict quality inspection before shipment to ensure consistent quality and stable performance.
We provide a 3-year warranty for eligible products against manufacturing defects under normal use. The warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, or other human factors. Additional repair or replacement charges may apply for damage outside the warranty coverage.
For warranty details or technical support, please contact our service team.
Our Product Range
JUNSON specializes in professional security and access control solutions, including:
- Electromagnetic Locks
- Electric Locks
- Electric Strike Locks
- Electric Bolt Locks
- Electronic Door Locks
- Access Control Systems
- RFID Card Readers
- Fingerprint Access Controllers
- Exit Push Buttons
- Panic Bars and Exit Devices
