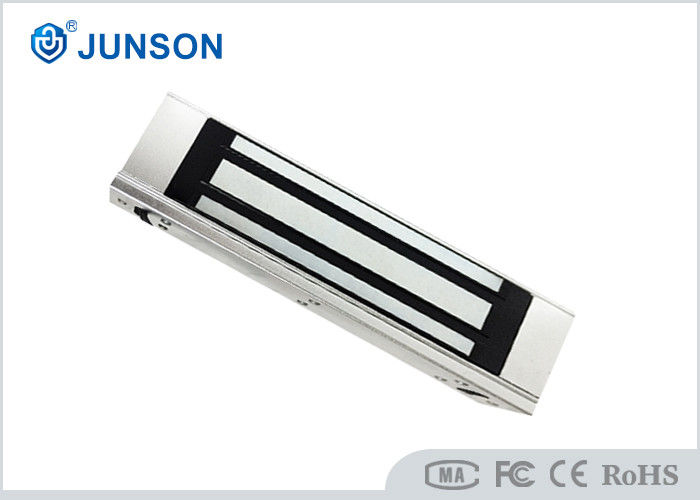

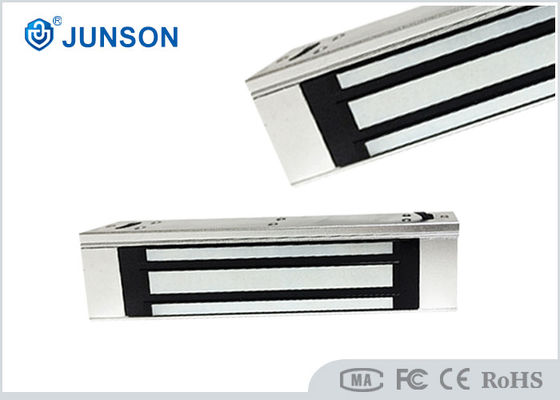

JS-180S 180kg Electromagnetic Lock for Sliding Doors and Access Control
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/SGS/ROHS/FCC |
| Model Number: | JS-180S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T,PayPal or Western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Armature Plate Finish: | Zinc | Suitable Humidity: | 0~90%(non-condensing) |
|---|---|---|---|
| Export Markets: | Global | Feature: | Fail Safe |
| Weight: | 1.2kg | Application: | Metal, Glass, Or Wooden Door |
| Holding Force: | 300lbs / 180kg | Available Bracket: | JS-18U, JS-18L. JS-18ZL |
Product Description
Product Title
JS-180S 180kg Electromagnetic Lock for Sliding Doors with 300lbs Holding Force
Product Description
The JS-180S Electromagnetic Lock is a compact and reliable locking solution designed for sliding doors and access control systems. Utilizing advanced electromagnetic technology, it generates a powerful 180kg (300lbs) holding force to keep doors securely locked while consuming minimal power.
Manufactured with a premium aluminum alloy housing and imported silicon steel core, the JS-180S delivers stable magnetic performance, long service life, and dependable security for residential and commercial applications. It supports both 12V DC and 24V DC operation, making it compatible with a wide range of access control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JS-180S |
| Holding Force | 180kg (300lbs) |
| Lock Dimensions | 170 × 40 × 21 mm |
| Armature Plate Dimensions | 130 × 33 × 12 mm |
| Operating Voltage | DC 12V / 24V |
| Current | 380mA (12V) / 190mA (24V) |
| Signal Output | Dry Contact (NO / NC / COM) |
| Housing Material | Aluminum Alloy |
| Surface Finish | Zinc Plated |
| Surface Temperature | ≤20°C |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0–90% RH (Non-condensing) |
| Compatible Brackets | JS-18U, JS-18L, JS-18ZL |
| Weight | 1.2kg |
Applications
The JS-180S is suitable for a variety of access control installations, including:
- Residential Sliding Doors
- Glass Doors
- Wooden Doors
- Metal Doors
- Office Buildings
- Retail Stores
- Apartment Entrances
- Smart Access Control Systems
- Security Doors
Key Features
- 180kg (300lbs) Holding Force provides reliable locking performance for residential and commercial applications.
- Dual Voltage Operation supports both DC 12V and DC 24V power supplies (12V standard, 24V optional).
- Fail Safe Design unlocks automatically when power is removed for enhanced emergency safety.
- No Mechanical Bolt design minimizes wear and ensures smooth, maintenance-free operation.
- Anodized Aluminum Housing offers excellent corrosion resistance and long-lasting durability.
- High-Quality Silicon Steel Core delivers strong magnetic attraction and stable performance.
- Built-in Door Status Monitoring with NO/NC dry contact output for real-time lock status feedback.
- MOV Reverse Current Protection safeguards the lock against voltage spikes and extends service life.
- Dual Insulated Structure enhances magnetic efficiency while improving operational stability.
- Compatible with Multiple Door Types, including wooden doors, glass doors, metal doors, and fire-rated doors.
- Low Power Consumption with minimal heat generation for continuous operation.
- Easy Integration with access control systems, exit buttons, card readers, and fire alarm systems.
Why Choose JUNSON Magnetic Locks?
With over 20 years of manufacturing experience, JUNSON is committed to delivering high-quality electromagnetic locks for professional access control applications. Our magnetic locks are manufactured using advanced production equipment and precision assembly technology to ensure superior performance, durability, and reliability.
The lock housing features a high-quality surface treatment that provides excellent corrosion and oxidation resistance, while the optimized magnetic circuit design delivers up to 20% greater holding force compared to conventional magnetic locks.
Today, JUNSON products are trusted by customers in more than 60 countries and regions. Our electromagnetic locks are widely installed in airports, metro stations, banks, government facilities, commercial buildings, residential communities, schools, hospitals, and other high-security environments. By combining dependable quality with intelligent access control solutions, JUNSON has earned a strong reputation among distributors, system integrators, and end users worldwide.
JUNSON Advantages
- Over 20 years of access control manufacturing experience
- Advanced production equipment and strict quality control
- Up to 20% stronger holding force than conventional magnetic locks
- Excellent corrosion and oxidation resistance
- Stable performance with long service life
- CE, FCC, and RoHS certified products
- Exported to over 60 countries worldwide
- Professional OEM & ODM customization services
- Technical support and responsive after-sales service
- Trusted by security professionals for commercial and industrial projects
