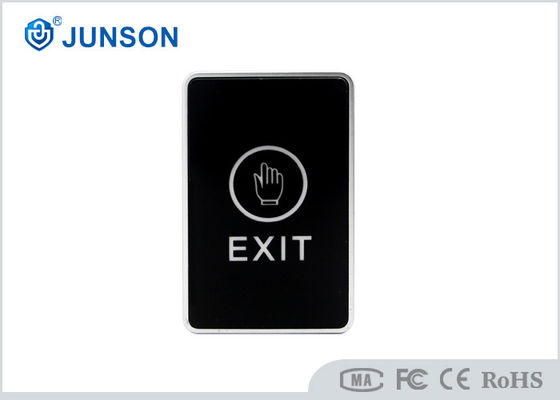

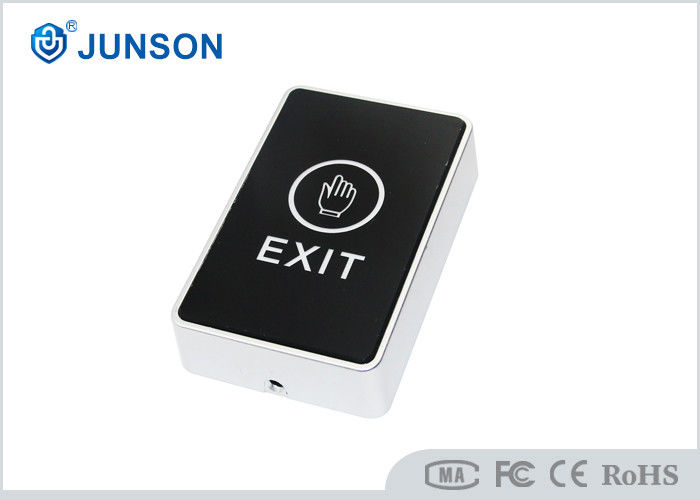

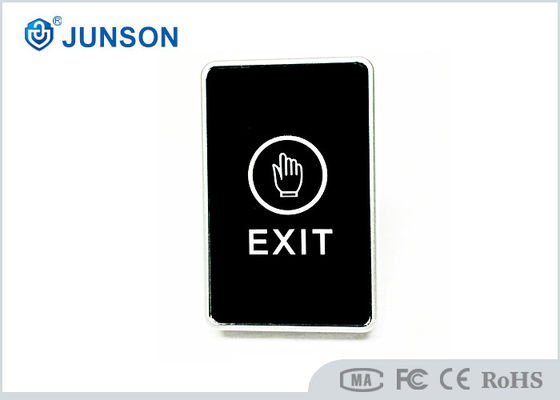

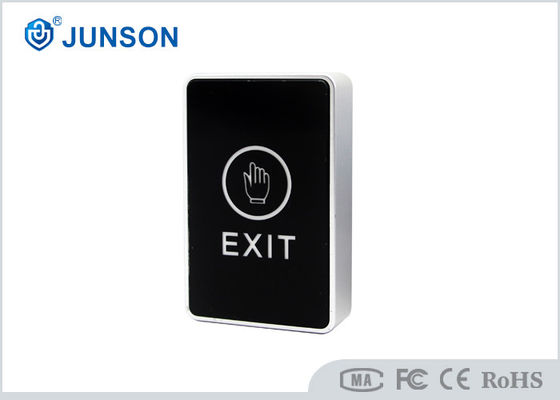

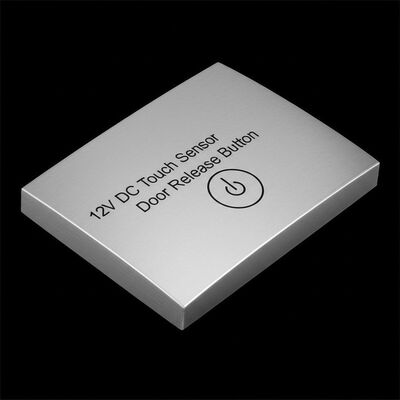

DC 12V Touch Sensor Door Release Button with Infrared Technology and Non-Mechanical Design for Magnetic Locks
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE |
| Model Number: | JS-C1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 20,000pcs per month |
|
Detail Information |
|||
| Brand: | JUNSON | Model: | JS-C1 |
|---|---|---|---|
| Size: | 86*53*25mm | Materials: | Plasting Button |
| Application: | All Narrow Door Frame | Voltage: | DC 12V |
| Contact: | NO/NC/COM | Action Sensor: | Infrared Technology |
| Led Color: | Blue When Action | Infrared Sensor Size: | Dia 28mm |
| Highlight: | DC 12V Touch Sensor Door Release Button,Infrared Technology Exit Push Button,Non-Mechanical Design Magnetic Lock Release Button |
||
Product Description
DC12V Push Touch Sensor Switch for Magnetic Door Lock Systems
Model: JS-C1
| Brand | JUNSON |
|---|---|
| Materials | Plastic button |
| Dimension | 86*53*25 (mm) |
| Thickness of materials | 2mm |
| Weight | 0.15kg |
| Finishing | Sandblast finishing |
| Current rating | 3A@36V DC Max |
| Contact interface | NO/NC/COM |
| Mechanical life | 500000 times |
| Operating Temp | -10℃ - 55℃ |
| Suitable Humidity | 0-95% (non-condensing) |
| Available | All kind of narrow door frame |
| Standard Packing | 100pcs |
| Cartons size | 51L * 24W * 47H (cm) |
- Innovative design without mechanical bolts for enhanced durability
- Stylish aluminum panel offering a sleek and modern appearance
- Includes a mounting box for quick and easy installation
- Tested for over 500,000 cycles to ensure long-term reliability
- Equipped with three contact outputs, compatible with various lock types
- Ideal solution for access control systems seeking efficiency and style
The DC 12V Touch Sensor Switch is a modern and reliable solution for access control systems. Featuring a non-mechanical design, it delivers smooth, silent operation with extended service life. The sleek aluminum panel combined with touch-sensitive technology makes it well suited for contemporary environments such as offices, residential buildings, and smart security installations. Built for durability and compatible with a wide range of magnetic door locks, this switch provides convenient and dependable access control for daily use.
We have QC personnel stationed on production lines to conduct inspections. All products undergo thorough inspection before delivery, including inline inspection and final inspection.
- All raw materials checked upon arrival at our factory
- All components, logos, and details checked during production
- All packing details verified during production
- Production quality and packaging checked during final inspection
- Professional service in packaging and printing products exporting
- Superior manufacturing capabilities
- Various payment terms available: T/T, Western Union, L/C, Paypal
- High quality materials with competitive pricing
- Small order quantities accepted
- Quick response times
- Safe and fast transportation options
- OEM design services for all customers
