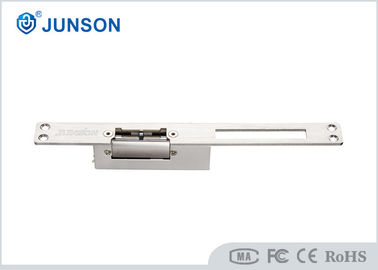

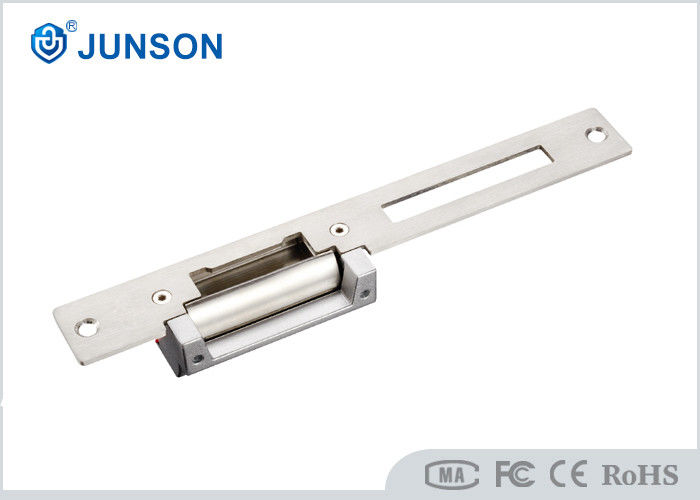

European 12VDC Fail Secure Electric Strike Lock Designed for Wooden Doors
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE |
| Model Number: | JS-138L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $15-$18 |
| Packaging Details: | 60 pcs/cartons |
| Delivery Time: | 1-7 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 3,000pcs per month |
|
Detail Information |
|||
| Lock Size: | 250Lx32Wx33H(mm) | Security Mode: | Lock Or Open When Power Off |
|---|---|---|---|
| Input Voltage: | DC12V±10% | Working Current: | 200mA |
| Certificate: | CE/FCC/ROHS | Material Of Housing: | Stainless Steel |
| Door Type Applicable: | Wooden Door , Glass Door ,Metal Door , Fireproof Door | Opening Mode: | 90 Degree Swing Door |
Product Description
12V DC European-Style Fail Secure Electric Strike Lock for Heavy Wooden Door
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 250Lx32Wx33H(mm) |
| Weight | 0.4kg |
| Time Delay | NO |
| Signal output | NO |
| Working Current | 200mA |
| Opening Mode | 90 Degree Swing Door |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Input Voltage | DC12V±10% |
| Surface Temperature | Within +20°C |
| Security Type | Locked when energized / open when energized |
| Opening Mode | 90 Degree Swing Door |
| Contact | Dry contact |
| Material of Housing | Stainless steel |
| Certificate | CE/FCC/ROHS |
The electric strike operates on a similar principle to the electric bolt lock and must be used together with a mechanical lock, which limits its application range. It is commonly installed on standard wooden doors, where the strike’s latch engages with the door bolt to lock or unlock the door.
Designed for embedded installation, the product offers a clean and elegant appearance. The electromagnetic component is made from high-quality magnetic materials and processed with advanced technology to eliminate residual magnetism, ensuring long-term stable performance.
Additionally, the strike supports doors that open up to 90 degrees and features a durable stainless-steel structure capable of withstanding an impact force of up to 800kg, providing both strength and reliability.
Product Features:
-
High Strength: Withstands impact forces up to 800kg, ensuring exceptional durability and security.
-
Adjustable Lock Bolt: Special design allows flexible adjustment of the bolt distance to suit various door frames.
-
Easy Installation: Ideal for metal door frames with pre-cut holes, enabling quick and direct installation.
-
Long Service Life: Successfully tested for over 500,000 cycles to guarantee stable and reliable operation.
-
Certified Quality: Complies with CE, FCC, and RoHS standards for safety and performance assurance.
Installation drawing
