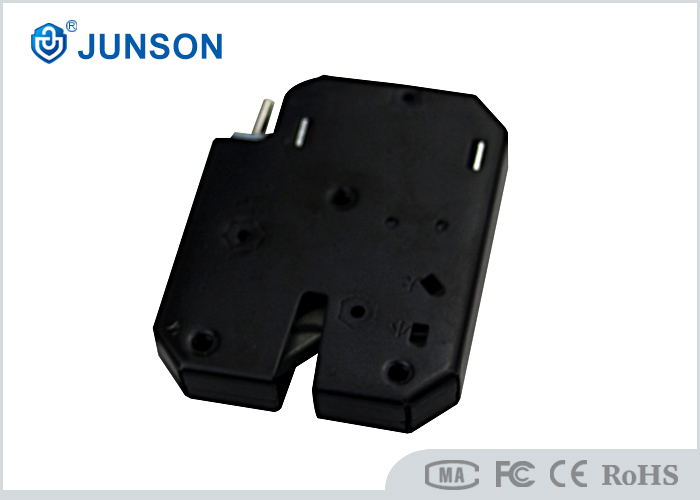

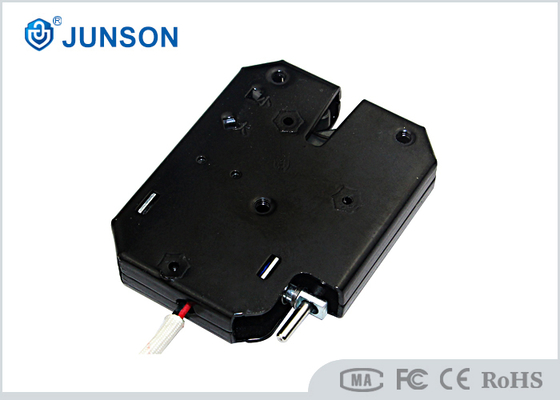

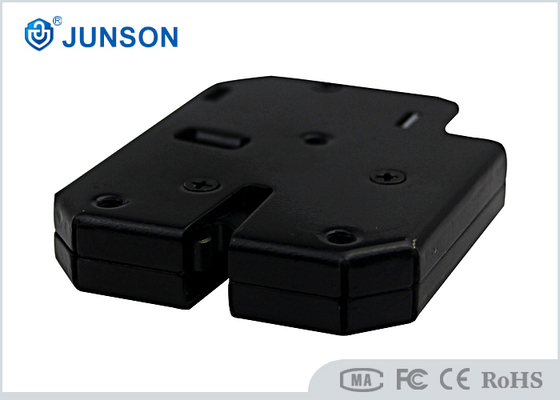

Smart Electronic Cabinet Lock for Access Control System with Door Sensor, NO/COM Output
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS- 305S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD3.97-5.5 /cps |
| Packaging Details: | 1000ctns per 20" container |
| Delivery Time: | 3-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 25,000pcs per month |
|
Detail Information |
|||
| Product Model: | JS-305S | Product Name: | Electric Cabinet Lock |
|---|---|---|---|
| Lock Size: | 80L*60W*13H (mm) | Fail Secure: | Locked When Power Off |
| Materials: | Steel Housing | Available: | Storage Locker, Mailbox, Express Locker |
| Standby Working: | Max.10S | Weight: | 0.16kg / Cps |
| Packing: | 100pcs / Cartons | Carton Size: | 35L*35W*15H (cm) |
Product Description
Smart Electric Cabinet Lock designed for access control systems, featuring door sensor integration and NO/COM output for versatile use.
Model: JS-305S
Junson Security’s cabinet lock is widely used in various storage locker systems, intelligent cabinet solutions, and smart locker applications.
Specifications:
| Lock Size | 80L*60W*13H (mm) |
| Weight: | 0.1kg/pcs |
| Lockpin length | 26mm |
| Materials: | Steel housing / fine copper coils |
| Fail Secure | locked when power off |
| Voltage | 12V / 24V DC (customized ) |
| Working Current: | 1A / 0.5A |
| Consuming power | 1.2W |
| Signal out | NO/COM |
| Open time | 1S |
| Standby current | ≦10S |
| Operation temperature | -40℃ -50℃ |
| Operation Humidity | 0-80℃ |
| Available | Storage locker, mailbox, express locker |
| Packing: | 100pcs/ carton |
| Carton size: | 35L*35W*15H (cm) |
Main Feature:
-
Metal housing, easy to install in the cabinet door.
-
Available for any kind of cabinet, file box. intelligent cabinet lock system.
-
Small Volume, light weight, Less power consumption, Easy installation
-
Workable with access control, remote control or special access control power.
-
Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
-
With Emergency open switch RFIDden, can open by hand in emergency condition
-
Safety, bolt’s holding force at 150kg
-
Standby electrify no longer than 10S, to prevent the burn the coil
-
With small with connector, and 20mm wires, easy to connect to the control board.
Our Service:
1.More Professional service in Packaging and printing products exporting field
2.Better manufacture ability
3.Various payment term to choose:T/T,Western Union,L/C,Paypal
4.High quality/Safe material/Competitive price
5.Small order available
6.Quickly response
7.More safe and fast transport
8.OEM design for all customers
Quality Warranty:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years
warranty for relative products.
On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
Electronic lock. Door lock. Access control.
