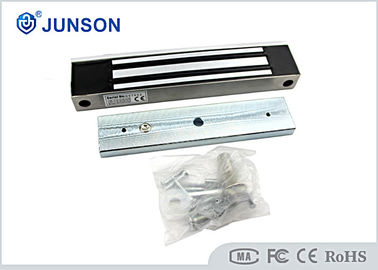

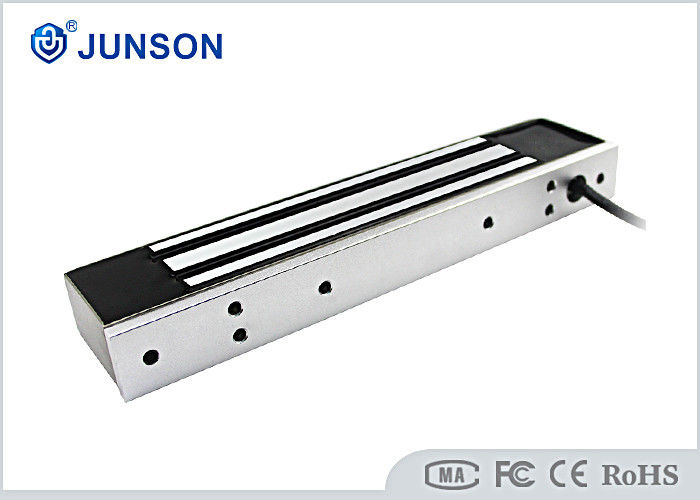

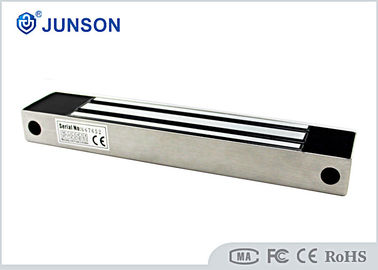

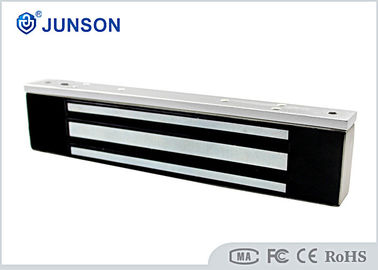

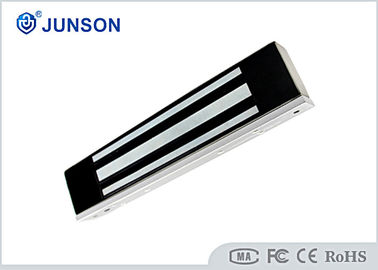

Outdoor Electromagnetic Lock 1200LBS IP67 Waterproof Double Door Magnetic Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | JS-280W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Model: | JS-280W | Weight: | 2.0kg |
|---|---|---|---|
| Current Draw: | 12V/480mA 24V/240mA | Surface Finishing: | Anodized Aluminum |
| Application: | Wooden Door, Glass Door, Metal Door, Fireproof Door | Holding Force: | 600lbs / 280kg |
| Feature: | Fail Safe | Cartons Size: | 35L * 29W * 15H (cm) |
Product Description
Durable 600LBS IP67 Waterproof Magnetic Lock Designed for Outdoor Door Security
The JS-280W single-door magnetic lock fits glass, wooden, fireproof, sliding, and metal doors. Its special anti-residual magnetism design enhances safety in access control and extends the electric lock’s durability.
Specifications of Waterproof IP67 Maglock 600LBS:
|
Armature plate dimension |
190Lx45Wx13H(mm) |
|
Lock Dimension |
222Lx47Wx26H(mm) |
| Weight | 2.0kg |
|
Holding force |
280Kg (600lbs) |
|
Voltage |
12 / 24V DC |
|
Current |
12V/480mA 24V/240mA |
|
Available bracket |
JS-280U, JS-280ZL, JS-280L |
|
Finishing for lock and Armature |
Zinc |
|
Surface Temp |
≦20℃ |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-90% (non-condensing) |
|
Signal output |
Dry Contact, NO, NC, Com |
|
Standard Packing |
10pcs |
|
Cartons size |
35L * 29W * 15H (cm) |
Descriptions of Waterproof IP67 Maglock 600LBS:
1. High Strength Material(kasolite steel), Anodized Aluminum Housing
2. Fail safe, Power to lock
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. Increase the holding Force, Dual Insulative Hosing
6. Design with no Mechanical Bolt
7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)
8. Collinear Load Test 280kg, 600pounds
9. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
10. MOV Provides Reverse Current Protection
FAQ
Q: How many different types of products your company manufactures?
A: Now we have more than 500 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
Q: What kinds of electronic lock products do you offer?
A: We offer many Electronic lock, like: Magnetic door lock, Electric lock, Electric door strike, Electric bolt, Electronic lock. Door lock. Access control.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
