Bluetooth Tuya App Fingerprint Intelligent Lock Cylinder
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE, FCC, ROHS |
| Model Number: | JS-FL42 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T,paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Model Number: | JS-FL42 | Size For Front Reader: | 164*43*43mm |
|---|---|---|---|
| User Capacity: | 100pcs Of Fingerprint, 100pcs Mifare Card | Card Type: | IC, 13.56Mhz |
| Open Way: | Fingerprint / Card / Tuya APP | Boxes Size: | 372*162*92mm |
| Packing: | 30pcs Per Carton | Carton Size: | 55.5*39*41 CM |
Product Description

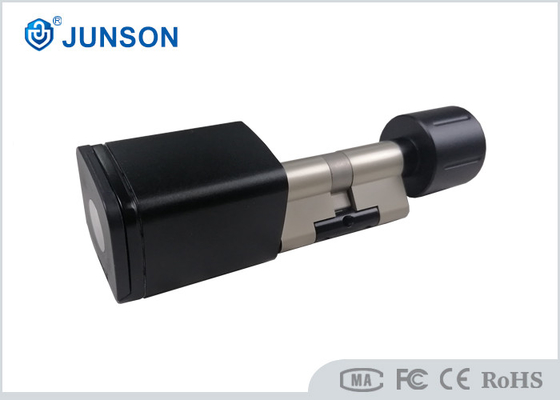

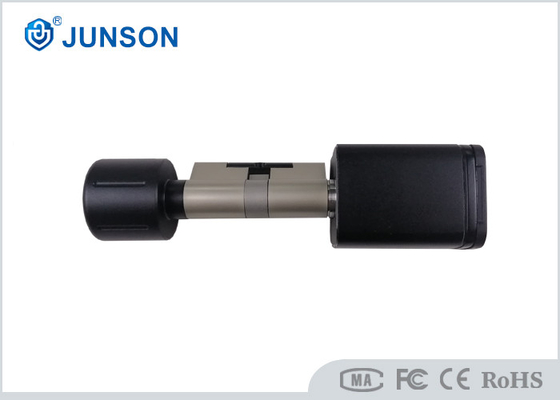

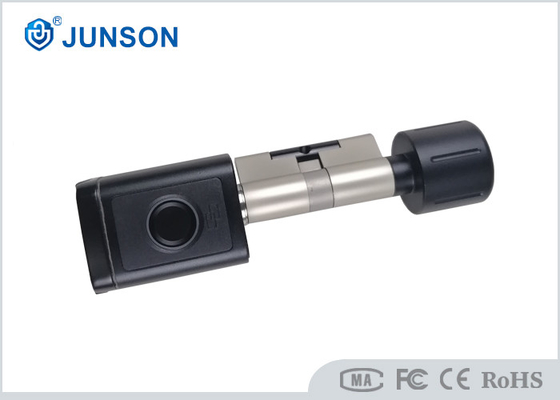

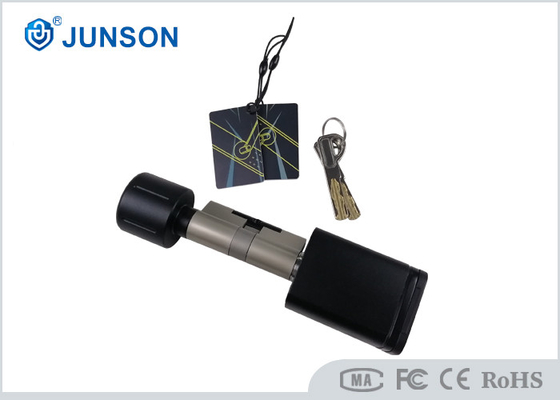

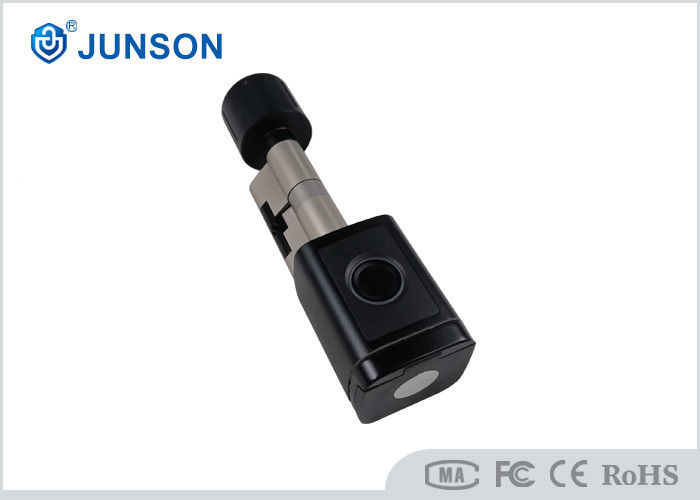

Bluetooth Tuya App Fingerprint Intelligent Lock Cylinder
App Integrated Fingerprint Lock Cylinder
Model: JS-FL42
This is special Fingerprint lock, it is used for current mechanical lock. You do not need to remove the current locks, just change lock handle with this smart lock. Very easy to install or change your current mechanical lock to fingerprint. Lock can be opened by Fingerprint, Tuya app and IC card.
Parameter List
|
Size for front reader |
164*43*43mm |
|
Voltage: Max |
5V battery power |
|
Battery: |
3pcs AAA Battery |
|
User Capacity: |
100pcs of Fingerprint, 100pcs Mifare Card |
|
Temporary Password |
Optional in other model with keypad |
|
Card Type: |
IC, 13.56Mhz |
|
Records storage: |
500pcs |
|
Materials: |
High Strength Aluminium Alloy |
|
Color: |
Black |
|
Lock body |
Original lock |
|
Applicable door thickness |
35-100MM |
|
Low voltage alarm |
3.5 V DC |
|
Identification time |
< 1S |
|
FAR |
< 0.0001% |
|
FRR |
< 0.01% |
|
Fingerprint resolution |
500DPI |
|
APP |
Tuya APP |
|
Network communication |
Bluetooth technology |
|
Open way: |
Fingerprint / Card / Tuya APP |
|
Operation temperature |
-20-60℃ |
|
Operation Humidity |
0-90℃ |
|
Battery Life: |
About 18 Moths |
|
Available for: |
Stainless steel door / iron door / wooden door |
|
Boxes Size |
372*162*92mm |
|
Packing : |
30pcs per carton |
|
Carton Size |
55.5*39*41 CM |
Features For Production
● High Performance chip, more powerful processor core.
● Smart Blue-tooth connection Directly, APP remote capture
● Remote push real-time record, remote request unlock
● Equipped with a variety of unlocking methods such as fingerprint and IC card
● Large-capacity local door opening record
● Voice prompts throughout the operation
● Multiple Type Passwords can be generated, more secure.
● Timely battery display, low battery charging reminder
FAQ
1. What is the Bluetooth Tuya App Fingerprint Intelligent Lock Cylinder?
The Bluetooth Tuya App Fingerprint Intelligent Lock Cylinder is a smart locking solution that allows users to unlock their doors using their fingerprints or through the Tuya mobile app via Bluetooth.
2. How do I install the lock cylinder?
Installation is straightforward. Follow the included user manual, or you can watch our installation video for step-by-step guidance. Basic tools are required, and no professional installation is needed.
3. How do I connect the lock to the Tuya app?
To connect the lock to the Tuya app, download the app from the App Store or Google Play, create an account, and follow the in-app instructions to pair your lock via Bluetooth.
4. Can multiple users use the lock?
Yes! You can add multiple fingerprints and grant access to other users through the Tuya app, making it perfect for families or shared spaces.
5. What happens if the battery runs out?
The lock is powered by batteries, and low battery alerts will be sent to your Tuya app. In case of battery failure, you can use the backup key provided to unlock the cylinder.
6. Can I reset the lock to factory settings?
Yes, you can reset the lock to factory settings using the reset button. This will delete all saved fingerprints and app connections.
7. Where can I get customer support?
For customer support, please visit our website or contact our support team via the app for assistance.
