Small Electric Cabinet Lock With Sensor For Express Locker
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-4052S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Lock Dimension: | 52L*40W*12H (mm) | Lockpin Length: | 25mm |
|---|---|---|---|
| Materials: | Steel Case With Powder | Working Type: | Fail Secure / Locked When Power Off |
| Sensor Feedback: | No,Com | Holding Force: | 50Kg |
| Voltage: | 12V Or 24V DC (optional) | Weight: | 0.1kg/pcs |
Product Description

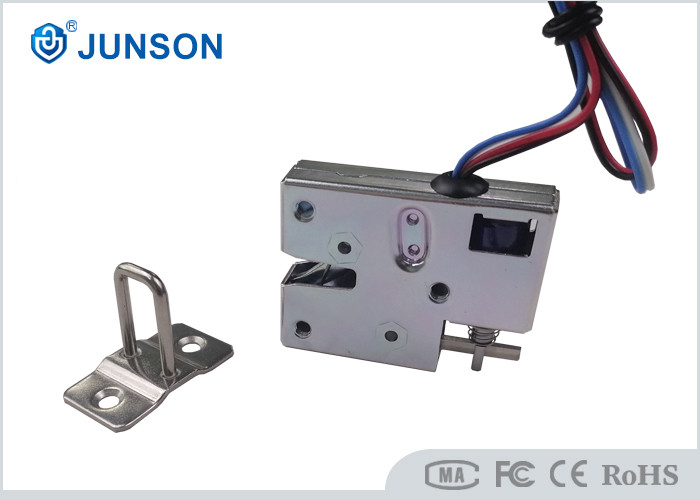

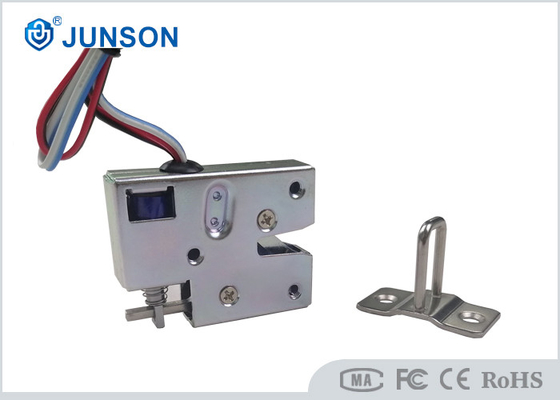

Small Electric Cabinet Lock With Sensor For Express Locker
Model: JS-4052S
Designed for express lockers and a wide range of applications, this compact and durable lock is built with a steel case and stainless steel hook to ensure long-lasting performance. With its lightweight design, low power consumption, and easy installation, the JS-4052S is ideal for hotel cabinets, vending machines, lockers, and more.
Parameter List:
| Lock Dimension | 52L*40W*12H (mm) |
| Lockpin length | 25mm |
| Working Type | Fail secure / locked when power off |
| Materials | Steel Case with powder |
|
Sensor feedback |
No,Com |
| Voltage | 12V or 24V DC (optional) |
| Lowest working Voltage | 9V |
| Working Current: | 2.4A |
| Consuming power | 28.8W |
| Open time | Max. 1S |
| Continue power on | ≦4S |
| Electrical Cycle | 5% interval electric, no more 1S one times |
| Insulation Rate | Class F 155℃ |
| Insulation Resistance | 50MΩ / DC500V |
| High-Voltage | AC 500V(50/60Hz) 1 Sec breakdown circle |
| Cable Length | 150mm (customizable length) |
| Terminal Type | SM-2.54-2P (customizable terminal) |
| Color: | Silver color |
| Prushing force | >600g |
| Holding Force | 50Kg |
| Shockproof strength | 30N Max. |
| Life Times | 150,000 times |
| Operation temperature | -25℃ -45℃ |
| Operation Humidity | 0-80℃ |
| Available | All kind of Cabinet |
| Weight | 0.1kg/pcs |
| Packing | 100pcs/ carton |
| Carton size | 32L*22W*16H (cm) |
Main Feature:
1. Steel case, stainless steel hooker, firmly and durable
2. Small Size, light weight, Less power consumption, Easy installation
3. Available for Hotel lattice cabinet vending machines, vending machines, logistics cabinets, lockers, letter boxes, storage cabinets, filing cabinets, meter boxes, wardrobes, mobile phone cabinets, shoe cabinets and other centralized control cabinets.
4. Continues electrify no longer than 1S, to prevent the burn the cable
5. With small with connector, and 150mm wires, easy to connect to the control board.
6. Workable with access control, remote control or special access control power.
Lock Dimension: hooker is 304 stainless steel:

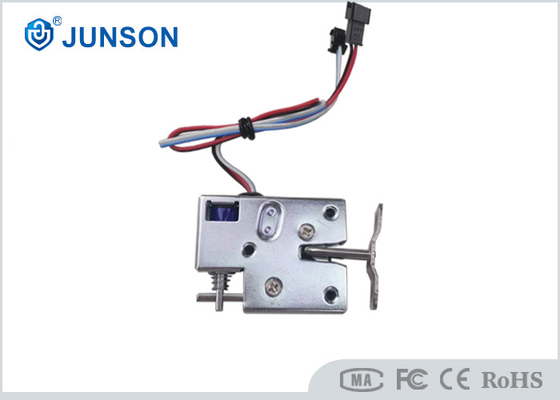

JS-4052S with sensor feedback:
