Small Electric Cabinet Lock For Express Locker With Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-4050S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Lock Dimension: | 50L*40W*9.7H (mm) | Lockpin Length: | 22mm |
|---|---|---|---|
| Working Type: | Fail Secure / Locked When Power Off | Materials: | Zinc Alloy Case / Fine Copper Coils |
| Voltage: | 12V Or 24V DC (optional) | Holding Force: | 50Kg |
Product Description

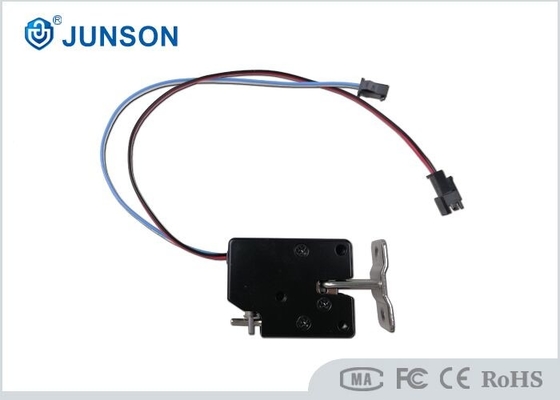

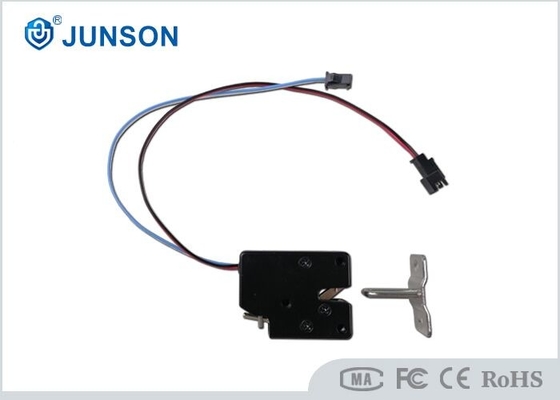

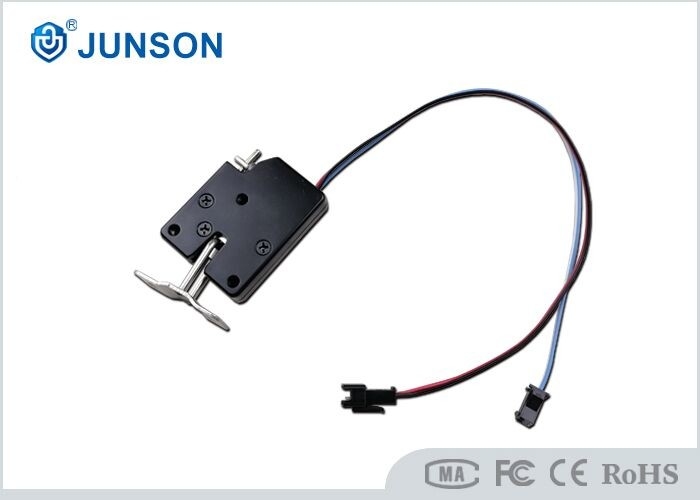

Small Electric Cabinet Lock For Express Lockers With Sensor
Model: JS-4050S
Our advanced electric cabinet lock secures your storage with convenient, reliable protection. Experience user-friendly access control and robust security in one smart solution.
Parameter List
| Lock Dimension | 50L*40W*9.7H (mm) |
| Lockpin length | 22mm |
| Working Type | Fail secure / locked when power off |
| Materials | Zinc Alloy Case / Fine copper Coils. |
| Voltage | 12V or 24V DC (optional) |
| Lowest working Voltage | 9V |
| Working Current: | 1.0A |
| Consuming power | 12 W |
| Open time | 1000mS |
| Continue power on | ≦4S |
| Cable Length | 100mm (customizable length) |
| Terminal Type | SM-2.54-2P (customizable terminal) |
| Color | Black , Matt Silver |
|
Sensor feedback |
No,Com |
| Prushing force | >600g |
| Holding Force | 50Kg |
| Shockproof strength | 30N Max. |
| Life Times | 100,000 times |
| Operation temperature | -25℃ -45℃ |
| Operation Humidity | 0-80℃ |
| Available | All kind of Cabinet |
| Weight | 0.1kg/pcs |
| Packing | 100pcs/ carton |
| Carton size | 32L*22W*16H (cm) |
Main Features:
1. The enclosure is made of a sturdy zinc alloy material, providing a firm and durable construction.
2. The small size and lightweight design make the enclosure easy to install and transport.
3. The enclosure is designed to have low power consumption, contributing to energy efficiency.
4. The enclosure is suitable for a wide range of applications, including hotel lattice cabinets, vending machines, logistics cabinets, lockers, letter boxes, storage cabinets, filing cabinets, meter boxes, wardrobes, mobile phone cabinets, shoe cabinets, and other centralized control cabinets.
5. The enclosure can be integrated with access control systems, remote control, or special access control power sources.
6. With small with connector, and 100mm wires, easy to connect to the control board.
7. Workable with access control, remote control or special access control power.
Lock Dimensions:
FAQ:
1. Are you a factory or a trading company?
A: We are a company with our own trading department and factory
2. What is your policy sample?
A: Small batch samples can be customized for testing according to requirements. We can arrange samples through DHL or UPS, but the courier fee will be paid by the customer.
3. How many days does it take to prepare the sample?
A. If there are no additional requirements, they will be sent within 7 days
4. How many days does mass production take?
A: This depends on the order quantity. If the order quantity is less than 1000 pieces, it will be delivered within 7 working days
5. What is your payment method?
A: We can accept telegraphic transfer, PayPal, Xtransfer etc.
6. What packaging does your product use?
A: We have professional product packaging. Customized packages can also be provided based on specific MOOs
7: Can I print my own brand logo on your product?
A: OEM orders are very welcome. Please provide us with detailed information on the color and location of your logo; User manual, and then send us the query. In this way, we can provide you with the most accurate answer in the first place.
