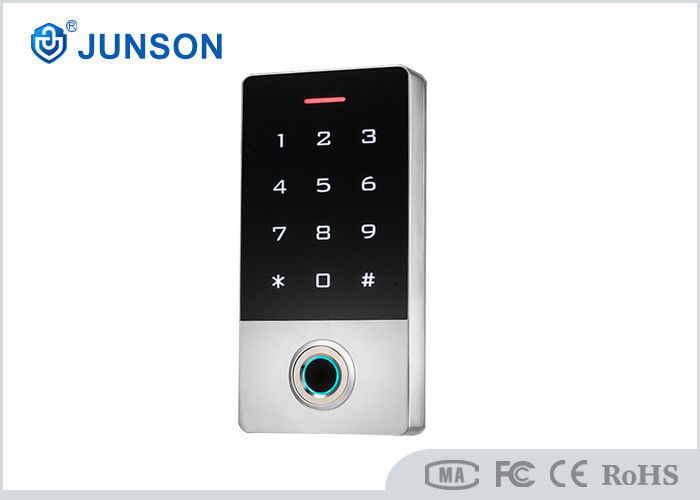

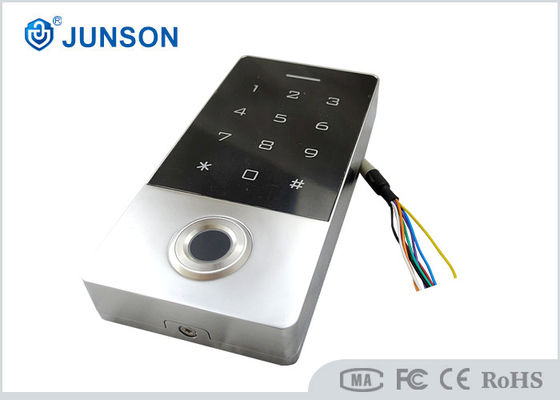

IP68 Waterproof Fingerprint RFID Access Control Keypad Reader — Tuya Smart Enabled
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CMA,FCC,CE,RoHS |
| Model Number: | JS-FW01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | 54pcs per Cartons: 56*41*40 CM; 32kg/ctn. |
| Delivery Time: | 2-7 working days after payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Materials:: | Zinc Alloy Housing | Operating System：: | IOS 7.0 , Android 4.3 Above |
|---|---|---|---|
| Application:: | Tuya Smart Control | Working Voltage:: | 12V / 24VDC |
| User Capacity：: | 10000 Card Users; 600 Fingerprint Users | Frequency Distance:: | 2-6 Cm |
| Card Type:: | EM 12.5Khz And RFID Card (Optional) MF 13.56Mhz And CPU Card (optional) | Waterproof Grade:: | IP68 |
| Open Door Method:: | Fingerprint Card, Pin , Tuya APP | Dimension:: | 140 Mm * 70 Mm * 22 Mm |
| Highlight: | Metal Waterproof RFID Keypad Reader,Fingerprint RFID Keypad Reader,24VDC Fingerprint Door Access Control |
||
Product Description
MFIP68 Waterproof Fingerprint RFID Access Control Keypad Reader — Tuya Smart Enabled
Fingerprint Access Control With Tuya APP
Model: JS-FW01
The JS-FW01 is a next-generation multi-function standalone access control terminal, engineered with a built-in ARM Cortex 32-bit microprocessor for superior performance, stability, and reliability.
Designed for both reader mode and standalone access control mode, this device is ideal for a wide range of environments including offices, residential communities, villas, banks, warehouses, and high-security facilities.
Parameter List:
| Housing Material | Zinc Alloy (Metal Casing) |
| Smart App | Tuya Smart / Smart Life |
| Mobile Compatibility | iOS 7.0 and above; Android 4.3 and above |
| Protection Rating | IP68 (Fully waterproof & dustproof) |
| Input Voltage | DC 12V – 24V |
| Current Consumption | Max operating: ≤100mA; Standby: ≤35mA |
| User Database | 10,000 users (card or PIN); 600 fingerprint templates |
| Reading Range | 2–6 cm |
| Wiegand Interface | Built-in Wiegand 26–44 input & output |
| I/O Connections | Relay output, Exit button, Door sensor, Alarm, Wiegand IN/OUT |
| Supported Credentials | EM 125KHz & RFID (standard); MF 13.56MHz & CPU Card (optional) |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | 0%–95% (non-condensing) |
| Unlock Options | Fingerprint, RFID Card, PIN Code, Tuya APP |
| Door Relay Time | 1–300 seconds (programmable) |
| Finish Color | Silver |
| Unit Dimensions | 140mm × 70mm × 22mm |
| Unit Weight | 0.57kg |
| Retail Box Size | 19cm × 13cm × 6cm |
| Bulk Packaging | 54 units per carton |
| Carton Dimensions | 56cm × 41cm × 40cm |
| Carton Gross Weight | 32kg |
Features:
-
Multi-Modal Access: Supports fingerprint, EM/RFID card, PIN code, and Tuya APP remote unlocking
-
Dual Card Frequency: Reads 125KHz EM cards (standard); optional 13.56MHz MF & CPU card support
-
Touch Backlight Keypad: Responsive illuminated keypad for low-light operation
-
Flexible Operation Modes: Functions as standalone controller or Wiegand reader (WG 26–44)
-
Admin Management: Supports adding/deleting users directly on device
-
Smart Home Integration: Full Tuya APP control for remote access and user management
-

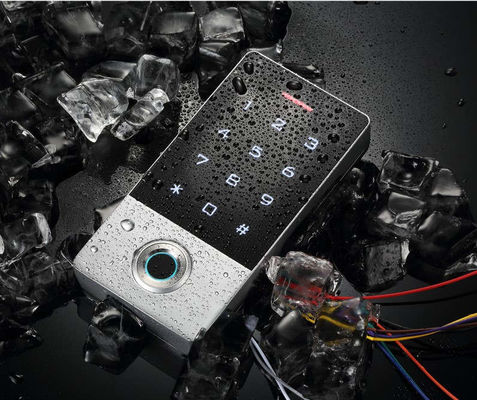

All-Weather Durability: IP68-rated waterproofing for reliable outdoor installation
-
Robust Metal Construction: Zinc alloy housing ensures long-term durability and vandal resistance
-
High Capacity: Store up to 10,000 card/PIN users and 600 fingerprint users

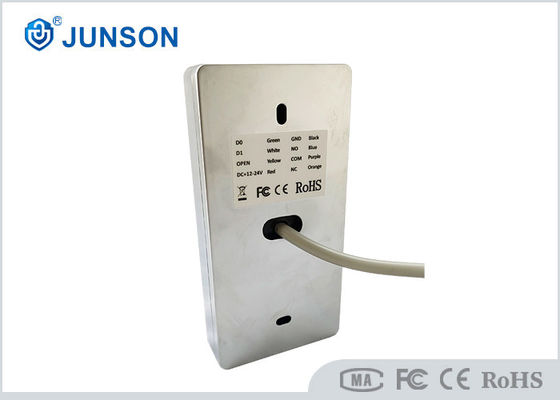

Wiring Indication:
| Colour | Function | Description |
| Green | D0 | WG output D0 |
| White | D1 | WG output D1 |
| Yellow | OPEN | Exit button one end(the other end connected GND) |
| Red | 12V+ | 12V + DC Regulated Power Input |
| Black | GND | 12V - DC Regulated Power Input |
| Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
| Purple | COM | Relay Public end, connect GND |
| Orange | NC | Relay Public end, connect NC |
Images and video
Connector Diagram:
Model one: Connector to Normal Power supply
Model Two: Connector to Special access Control Power supply
Worked As as Reader Only
FAQ:
Q1: Can I order a sample for testing? A: Yes, sample orders are available. Sample cost and shipping fee will be charged accordingly.
Q2: Do you provide OEM/ODM services? A: Yes. We offer logo customization, boot screen wallpaper, gift box design, and user manual printing.
Q3: What is the lead time? A: Sample: within 2 days; Bulk order: 3–30 days; OEM/ODM order: 10–30 days depending on quantity.
Q4: What are your payment terms? A: Sample and small orders require 100% payment before shipment. Bulk orders can be negotiated.
Q5: Why choose Junson? A: With over 10 years of specialization in security products, we guarantee stable quality and provide a professional technical support team for rapid problem resolution.
