Temic T5577 Key Card 1S 0.2A Dynamic Electronic Door Locks
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-918E-Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T, PayPal or Western Union in advance |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Working Voltage: | 6 V | Working Humidity: | ≤80% |
|---|---|---|---|
| Sensor Distance: | 30-50(mm) | Card Type: | Temic T5577 |
| Door Open Method: | Left | Product Name: | Electronic Key Card Door Locks |
| Dimension: | 28*7.5*6.71(cm) | Dynamic Power Consumption: | 200 (mA) |
| High Light: | 0.2A Dynamic Electronic Door Locks 0.2A Dynamic Electronic Door Locks,1S Dynamic Electronic Door Locks,Temic T5577 Key Card Door Locks |
||
Product Description

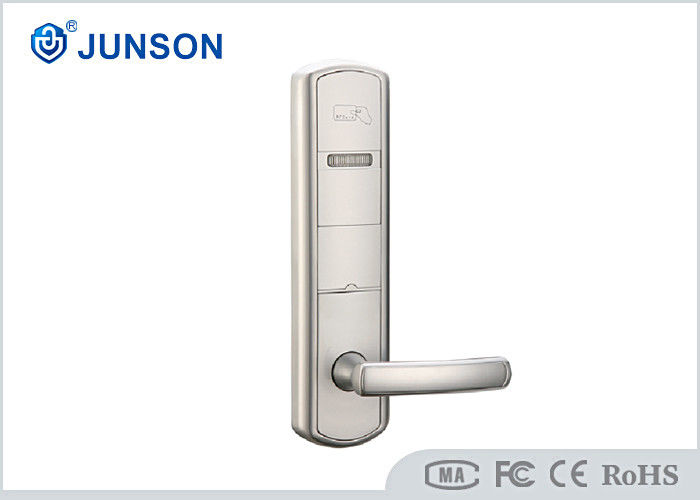

0.2A Dynamic power consumption electronic key card door locks
JS-918E-Y
Description:
1. Forged from stainless steel, it has high safety and plasticity.
2 . Intellectual ultrathin little core of lock,This makes the breakage to the door as little as possible when making holes.
3 . We test every circuit board to ensure its lifespan.
4 . Lack of voltage indication to clew users should change batteries in time.
5 . Emergency Cards or mechanical keys are used to open doors in special situations.
6. The latest 256 records of the door opening are saved circularly. Keep up to date with the news.
7. End the opening function of the lost or opened card.
8. Instruct not to close the door. There is a clock inside the lock to control the use time of the key card and prevent customers from defaulting on payment.
9. Our software can clarify the management level of the general manager, buildings, floors, service areas and rooms. The permissions are clear.
Size:
Specifications:
| Card Type | Temic T5577 or IC |
| Starting time | <1 second |
| Master card capacity | 2 |
| Guest card capacity | 200 |
| Finishing: | Painting or Plating |
| Working Voltage | Direct current 6V, 4 pieces of alkaline battery |
| Static power consumption | <4μA |
| Dynamic power consumption | About 200 mA |
| Working temperature | -20 to 50 centigrade |
| Working humidity | ≤ 80% |
| Unlocking card | contactless card |
| Door open method | Left open, right open |
| Door thickness | within 30~50mm |
| Unlocking record | Save the newest 1000 piece of unclocking record( including mechanical key unlocking) |
| Sensor distance | 3~5cm |
| Lock weight | 2.5 ~ 3.4kg |
| Battery life span | 12~16 months |
| Voltage alarm | Available |
| Fake closing alarm | Available |
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
