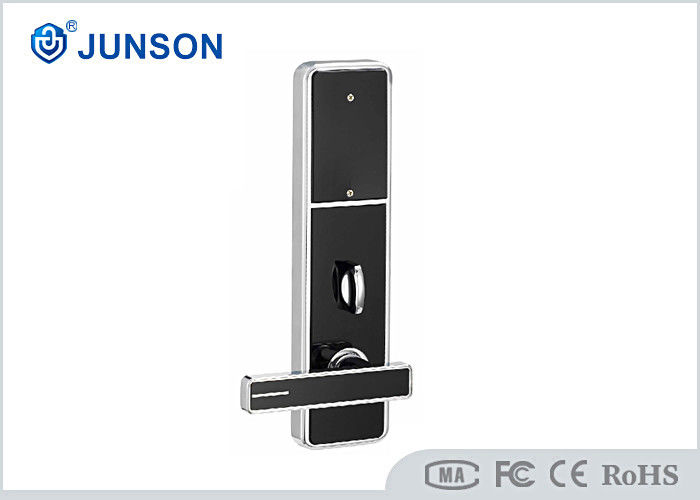

Temic T5577 IC Key 5cm 200mA RFID Electronic Door Lock
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-618E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T, PayPal or Western Union in advance |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Working Humidity: | ≤80% | Sensor Distance: | 3-5cm |
|---|---|---|---|
| Working Voltage: | Direct Current 6V, 4 Pieces Of Alkaline Battery | Door Open Method: | Left Open |
| Product Name: | Hotel Door Locks | Dimension: | 281.2*73.5*68.5mm |
| Color: | Silver | Dynamic Power Consumption: | 200mA |
| Highlight: | 200mA RFID Electronic Door Lock,5cm RFID Electronic Door Lock,Temic T5577 IC Key RFID Lock |
||
Product Description
Zinc Alloy Temic T5577 or IC Key card electronic digital door lock
JS-618E
Specifications:
| Card Type | Temic T5577 or IC |
| Starting time | <1 second |
| Master card capacity | 2 |
| Guest card capacity | 200 |
| Finishing: | Painting or Plating |
| Working Voltage | Direct current 6V, 4 pieces of alkaline battery |
| Static power consumption | <4μA |
| Dynamic power consumption | About 200 mA |
| Working temperature | -20 to 50 centigrade |
| Working humidity | ≤ 80% |
| Unlocking card | contactless card |
| Door open method | Left open, right open |
| Door thickness | within 30~50mm |
| Unlocking record | Save the newest 1000 piece of unclocking record( including mechanical key unlocking) |
| Sensor distance | 3~5cm |
| Lock weight | 2.5 ~ 3.4kg |
| Battery life span | 12~16 months |
| Voltage alarm | Available |
| Fake closing alarm | Available |
Description:
Made of stainless steel, high safety, good solubility.
2. Ultra-thin lock barrel, so that the hole on the door is less.
We test each circuit board to ensure its service life.
If there is no voltage indication, the user should replace the battery in time.
In case of emergency, use emergency card or mechanical key to open the door.
Keep the latest record of 256 round doors.
Stay up to date with the latest programs.
7 End losing or opening the card's open function.
8 means the door won't close.
The clock inside the lock controls the use time of the key card and prevents the customer from being charged.
Our software can define the management level of general manager, building, floor, service area and room.
The powers of the authorities are clear.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
