Fail Secure 4.8W 12VDC 0.54A Electric Cabinet Lock

Fail Secure 4.8W 12VDC 0.54A Electric Cabinet Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-307

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: US$2.93 - 5.00 /cps
Packaging Details: 200pcs / carton
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 5,0000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Electric Cabinet Lock Stroke: 4.3mm
Pole Size: 2.83cm Voltage:: 12VDC
Work Type: Fail Secure Available: Express Locker
Consuming Power: 4.8W Lock Dimension: 29*20*16mm
Duty Cycle: Electrify 25%
High Light:

0.54A Electric Cabinet Lock

,

12VDC Electric Cabinet Lock

,

4.8W Fail Secure Cabinet Lock

Product Description

DC resistance 4.8W 12V 0.54A Fail secure Electric cabinet lock



Model:JS-307



Specifications:



Lock Dimension 29*20*16mm
Stroke  4.3mm
Fail secure   locked when power off
Materials Fine copper coils
Lock pole length  28.3mm , Round
Duty cycle Electrify 25%
Working Current: 0.54A
Consuming power 4.8W
DC Resistance 28Ω±10% at 20℃
Voltage 12V DC
Open time 1S
Continue power on ≦15S
Operation temperature -5℃ -55℃
Operation Humidity 5-85℃
Available storage cabinet lock, mailbox, express locker
 Packing: 200pcs/ carton
Weight:  0.05kg/pcs
Carton size: 32L*22W*16H (cm)





Electronic characteristics



1.
Holding power: stroke 0mm≥ 300GF, stroke 5mm≥ 80GF

2.
Magnetic remanent: return at the weight of iron bar 5GF after using DC 12V (advance direction)

3.
Temperature rise: The maximum temperature after applying DC12V by resistance method is 65℃

4.
Service life: 500,000 repeated operations (continuous DC12V)

5.
Insulation resistance: coil and frame the Dc 500 v between normal temperature/humidity, 100 Ω

6.
Lead wire strength: add 0.5kGF (random direction) without shedding

7.
Voltage tolerance: AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA) between coil and rack



Lock Size drawing:

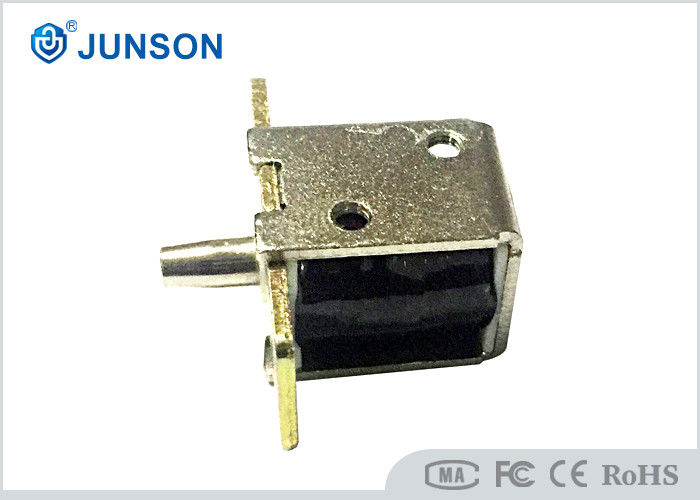

Fail Secure 4.8W 12VDC 0.54A Electric Cabinet Lock 0

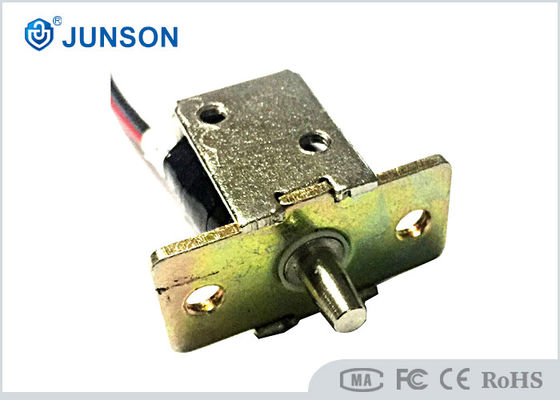

Fail Secure 4.8W 12VDC 0.54A Electric Cabinet Lock 1







Why Choose JUNSON:



 1. Junson security specail made all kindly of locks, like magnetic lock, bolt lock, soleniod lock since 2004,



 2. Junson security have strict quality control system during  materials, production and leaving factory



 3. All productions will be given 3 years warranties, and whole life technical supporting
