29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock

29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-304S

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: USD3.25 - 5.50 /cps
Packaging Details: 980cartons per 20" container
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 5,0000pcs per month
Get Best Price Contact Now

Detail Information

Voltage: 12V Operation Humidity: 0-80℃
Certification: CE/FCC Mico Switch: NO Output, Or NC (customized)
Current: 1A Working Type: Un Locked When Power On
Product Name: Electric Cabinet Lock Color: Silver
Carton Weight:: 17kg Packing Size: 50L*30W*21H (cm)
High Light:

1.2W Electric Cabinet Lock


29.5mm Lockpin Electric Cabinet Lock


12VDC Security Cabinet Locks

Product Description

CE Certification 12VDC 1A ​Silver Electric Cabinet Lock with Signal Output
Model: JS-304S
Junson' Electric cabinet lock passed CE certificate, available in various cabinet, like intelligent storage cabinet, file cabinet, mechanical device.

Lock Dimension69.5L*64.5W*13H (mm)
Lockpin length29.5mm
Working Typelocked when power off
Materials:Steel housing / fine copper coils
Voltage12V or 24V (customized )
Operation Humidity0-80℃
Consuming power1.2W
Signal outNO output, or NC output (optional)
Open time1S
Continue power on≦10S
Operation temperature-40℃ -50℃
Working Current:1A/12V, 0.5A / 24V
Temperature raise60K
Availableintelligent storage cabinet, mechaincal device
Packing:100pcs/ carton
Carton size:50L*30W*21H (cm)

Electric Cabinet lock Usage

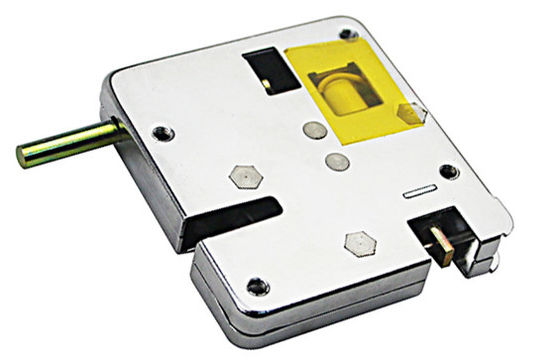

29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock 0
Main Feature:

  1. Small Volume, light weight, Less power consumption, Easy installation

  2. Standby charging does not exceed 10S

  3. Available for various cabinet, like intelligent storage cabinet, mechanical device.

  4. With small with connector, and 20mm wires, easy to connect to the control board.

  5. With mico switch, for door sensor signal out, NO output, NC need to customize

  6. With access control, remote control or special access control capabilities.

  7. Metal housing, With Emergency open switch hidden, can open by hand in emergency condition

  8. Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.

  9. Safety, bolt’s holding force at 150kg.

The Assemble workshop for Electric cabinet lock

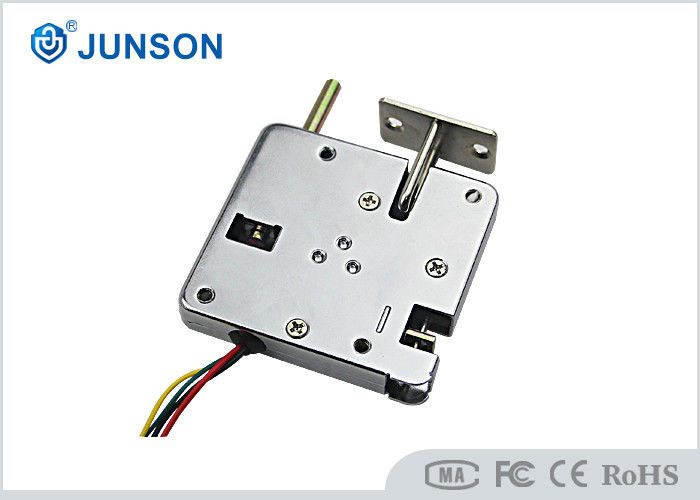

29.5mm Lockpin 12VDC 1A 1.2W Electric Cabinet Lock 1
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years
warranty for relative products.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
