15S Small Volume 10mm Stroke 0.16A 3.8W cabinet door locks
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS-303-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD3.18-5.00/cps |
| Packaging Details: | 990 cartons per 20" container |
| Delivery Time: | 3 orking days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 3,000pcs per month |
|
Detail Information |
|||
| Working Life: | 500,000 Times | Direction Of Lockpin: | Up Towards |
|---|---|---|---|
| Consuming Power: | 3.8W | Product Name: | Electric Cabinet Lock |
| Available: | All Kind Of Cabinet | Working Type: | Fail Safe |
| Carton Size: | 32L*22W*16H (cm) | Operation Humidity: | 0-80℃ |
| Voltage: | 24V | Lock Dimension: | 55L*41W*22H (mm) |
| Highlight: | 3.8W Cabinet Door Locks,10mm Stroke Cabinet Door Locks,15S Small Volume Cabinet Lock |
||
Product Description

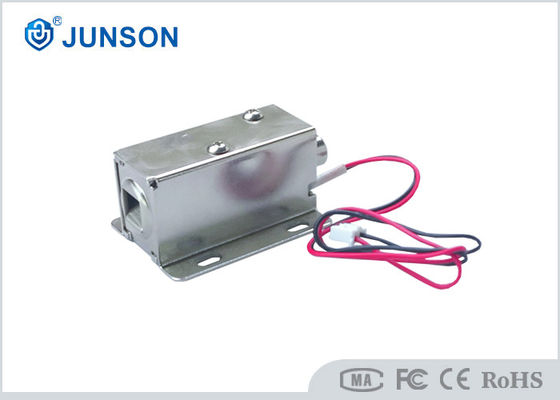

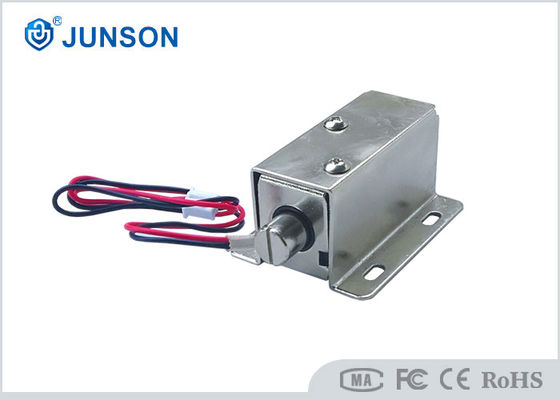

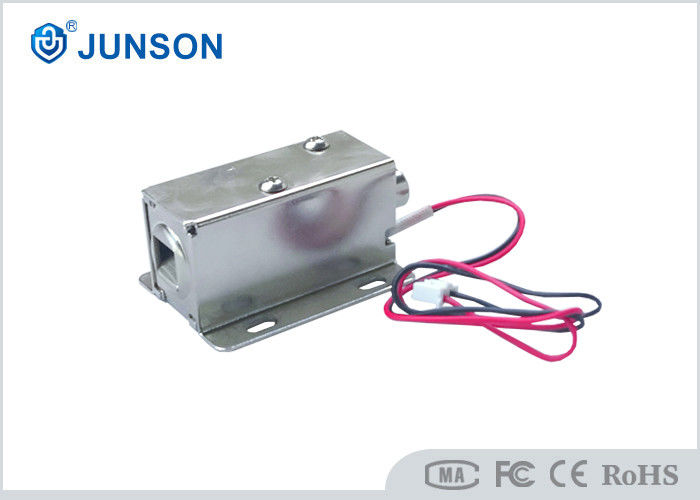

24V Fail Safe Small Volume Light weight Electric cabinet lock
Model: JS-303-F
Parameter List
| Lock Dimension | 55L*41W*22H (mm) |
| Lockpin length | 10mm |
| Stroke: | 10mm |
| Working Type | Fail Safe |
| Direction of lockpin | Up towards |
| Materials: | Metal case / fine copper coils |
| Open time | 1S |
| Working Current: | 0.16A |
| Consuming power | 3.8W |
| Voltage | 24V DC |
| Continue power on | ≦15S |
| Operation temperature | -40℃ -50℃ |
| Operation Humidity | 0-80℃ |
| Available | All kind of Cabinet |
| Weight: | 0.1kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 32L*22W*16H (cm) |
Main Feature:
-
High-strength steel, and fine copper coils, durable
-
Small Volume, light weight, Less power consumption, Easy installation
-
With small with connector, and 30mm wires, easy to connect to the control board.
-
Standby power-on time does not exceed 15 seconds to prevent coil burnout
-
Workable with access control, remote control or special access control power.
-
The direction of spring bolt can be changed, with lef
-
Install easily in the cabinet door.
Easy to change the direction of lockpin
take out the black metal chip under the spring. the lockpin can be take out and turn around to any directly you like.
|
|
