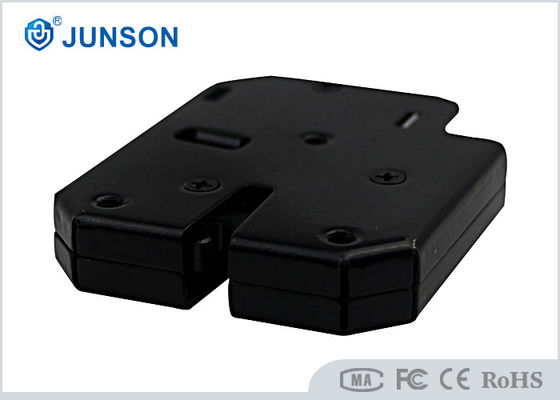

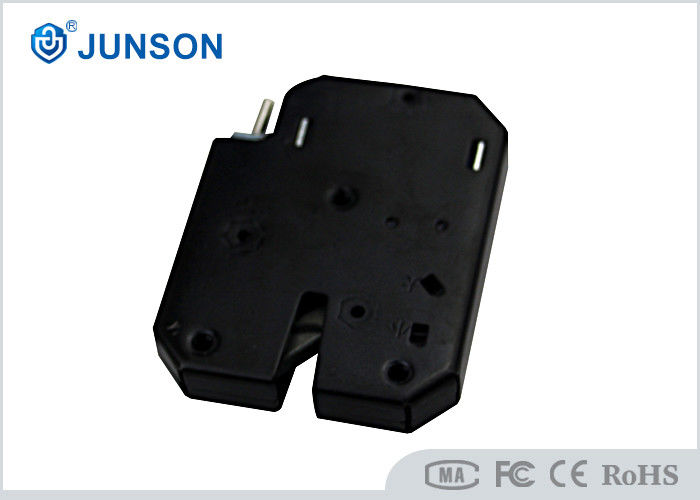

1.2W 1A 26mm Lockpin 30m IR Fail Secure Cabinet Lock
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||5pcs|
|Price:||USD3.97-5.00 / pcs|
|Packaging Details:||Carton size: 35L*35W*15H (cm)|
|Delivery Time:||2-7 working days after received your payment|
|Payment Terms:||T/T, paypal or western Union in advance|
|Supply Ability:||25,000pcs per month|
|Lock Deminssion:||80L*59W*13H (mm)||Lockpin Size:||26mm|
|Color:||Black||Product Name:||Cabinet Lock|
|Working Type:||Fail Secure||IR Distance:||30meters|
|Temperature Rise:||45K||Packing:||100pcs / Cartons|
1.2W Fail Secure Cabinet Lock,
30m IR Fail Secure Cabinet Lock,
26mm Lockpin Combination Cabinet Lock
Fail Secure Temperature rise Black Cabinet Lock with NO/COM
|Lock Dimension||80L*60W*13H (mm)|
|Working Type||Fail secure / locked when power off|
|Materials:||Steel housing / fine copper coils|
|Voltage||12V / 24V DC (customized )|
|Working Current:||1A / 0.5A|
|Signal out||NO/COM for JS-305S|
|Continue power on||≦10S|
|Operation temperature||-40℃ -50℃|
|Available||All kind of Cabinet|
|Carton size:||35L*35W*15H (cm)|
Main Feature Advantage:
High-strength steel, and fine copper coils, durable
Small Volume, light weight, Less power consumption, Easy installation
Available for any kind of cabinet, file box.
Continues electrify no longer than 10S, to prevent the burn the coil
With small with connector, and 20mm wires, easy to connect to the control board.
Workable with access control, remote control or special access control power.
Metal housing, easy to install in the cabinet door.
With Emergency open switch hidden, can open by hand in emergency condition
Safety, bolt’s holding force at 150kg
Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
Why Choose JUNSON:
Junson Company are specail in intelligent lock over thirteen years, have professonal R&D term and aftersale term. will offer whole professional service from pre-sale to after-sale.
Junson promiss to ship cargos within 3-7 days upon receipt the payment
Junson accept payment by paypal, western union, TT, LC, even D/P, Various payment methods meet your different needs.
Lock Size Drawing
Field installation Show
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
