65K Temperature Rise  0.32A 3.8W Steel Cabinet Lock

65K Temperature Rise 0.32A 3.8W Steel Cabinet Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-303-F

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: USD3.18-5.00/cps
Packaging Details: 990 cartons per 20" container
Delivery Time: 3 orking days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 3,000pcs per month
Get Best Price Contact Now

Detail Information

Working Type: Lock When Power On Current: 0.32A
Materials: Fine Copper Coil / Metal Case Voltage: 12V
Working Life: 500,000 Times Temerature Rise: 65K Max.
Packing: 100cps/carton Product Name: Electric Cabinet Lock
Working Time: Less 1S Weight:: 0.16kg/pcs
High Light:

0.32A Steel Cabinet Lock


3.8W Steel Cabinet Lock


65K Temperature Rise Cabinet Lock

Product Description

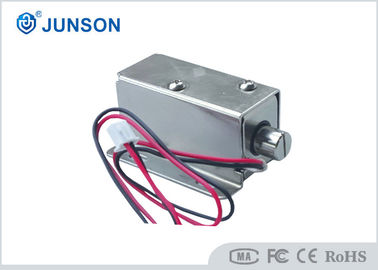

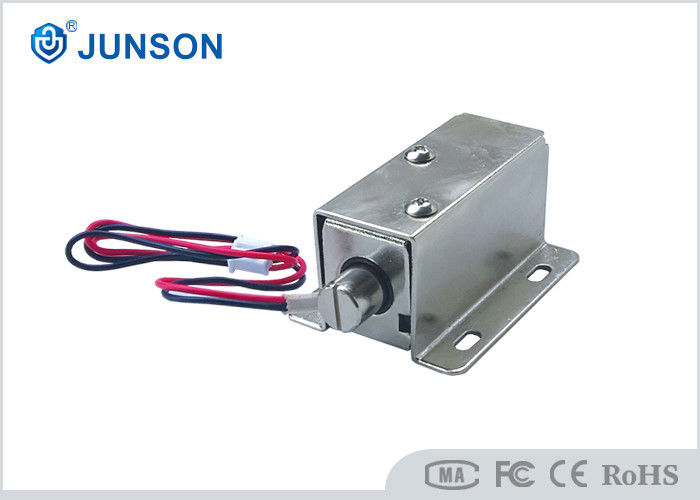

65K Max Temerature Rise Steel Metal Case Electric cabinet lock



Model: JS-303-F



Whole Metal instuacture


using A grade steels as case materials,

Electric cabinet lock designed power on momently. with low power consumption design


Fine Copper coils


Voltage in 12V DC, 6V DC or 24V DC, as optional

Long connect cables with terminal, easy to connect with control system.




Easy to change the direction of lockpin


take out the black metal chip under the spring. the lockpin can be take out and turn around to any directly you like.








Parameter List



Lock Dimension 55L*41W*22H (mm)
Lockpin length 10mm
Stroke: 10mm
 Working Type lock when power on
Direction of lockpin Up towards
Materials: Metal case /  fine copper coils
 Open time  1S
Working Current: 0.32A
Consuming power 3.8W
Voltage 12V DC
Continue power on ≦15S
Operation temperature -40℃ -50℃
Operation Humidity 0-80℃
Available All kind of Cabinet
Weight: 0.1kg/pcs
Packing: 100pcs/ carton
Carton size: 32L*22W*16H (cm)


65K Temperature Rise  0.32A 3.8W Steel Cabinet Lock 0


Main Feature:


  1. High-strength steel, and fine copper coils, durable

  2. Small Volume, light weight, Less power consumption, Easy installation

  3. With small with connector, and 30mm wires, easy to connect to the control board.

  4. Standby power-on time does not exceed 15 seconds to prevent coil burnout

  5. Workable with access control, remote control or special access control power.

  6. The direction of spring bolt can be changed, with lef

  7. Install easily in the cabinet door.




65K Temperature Rise  0.32A 3.8W Steel Cabinet Lock 1

65K Temperature Rise  0.32A 3.8W Steel Cabinet Lock 2



Q. 1: About Price:
The price is negotiable. It can be changed according to your quantity or package.
When you are making an inquiry, please let us know the quantity you want.
Q. 2: About the sample what is the cost of transportation?
The freight depends on weight, packing size and your country or province region, etc.
You can confirm lock by photo and video to save this money.
Q. 3: How long can I expect to get the sample?
The samples will be ready for delivery in 3-5days. The samples will be sent via international express
such as DHL , UPS , TNT , FEDEX and would be arrived within 3-5 days
