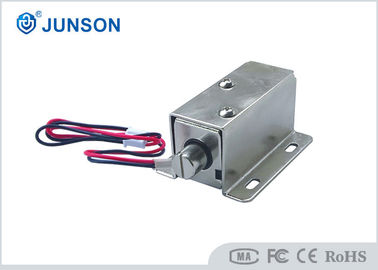

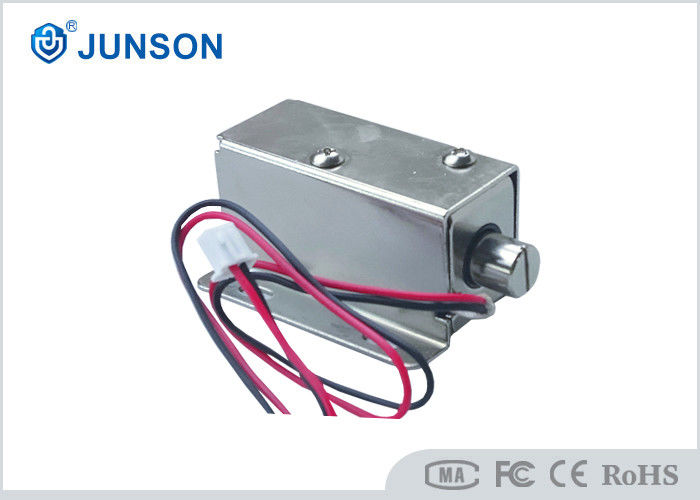

8mm Stroke Copper Coils 0.32A 3.8W Fail Safe Cabinet Lock

8mm Stroke Copper Coils 0.32A 3.8W Fail Safe Cabinet Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-3031-F

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: USD3.00 - 5.50 /cps
Packaging Details: 100pcs per cartons
Delivery Time: 2-5 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 5,0000pcs per month
Get Best Price Contact Now

Detail Information

Weight: 0.17Kg / Cartons Current:: 0.32A
Stroke: 8mm Product Name: Electric Cabinet Lock
Color: Silver Lock Dimenssion: 54*38*27mm
Type: Fail Safe Voltage:: 12V
Materials: Fine Copper Coils And Steel Housing Lockpin Length: 15mm
High Light:

3.8W Fail Safe Cabinet Lock


0.32A Fail Safe Cabinet Lock


8mm Stroke Electronic Cabinet Lock

Product Description

Stroke 8mm Fine Copper Coils Silver Cabinet Lock Fail safe type



Model: JS-3031-F





1. All metal structure

    This cabinet lock is made of high-quality steel and galvanized to ensure dura mater and rust prevention.


2. The structure is simple, the power is low, and the installation is convenient.


3.Thin copper coil, immediately unlocked after power-on, guaranteeing more than 500,000 times of work


4. Continuously power on for less than 15 seconds to prevent the coil from burning out.









Lock Dimension 54L*38W*27H (mm)
Lockpin length 15mm
Stroke:  8mm
Available storage cabinet, file cabinet, locker
Materials: Steel housing / fine copper coils
Openning time 1S
Working Current: 0.32A
Consuming power 3.8W
Voltage  12V or 24V DC (customized)
Standby on current  ≦10S
Operation temperature -5℃ -50℃
Operation Humidity 0-80℃
Working Type Fail Safe
Weight: 0.17kg/pcs
Packing: 100pcs/ carton
Carton size: 32L*22W*16H (cm)


Junson Security have 13 years experience in manufacture and trade in EM lock, deadblot lock, soleniod lock and access control system.





8mm Stroke Copper Coils 0.32A 3.8W Fail Safe Cabinet Lock 0



Quality Guarantee:


If the damage is not caused by humans, we will provide a 3-year warranty.

On the contrary, if repaired, Junson will charge an additional fee. For more information, please browse our weisite.


We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt

 lock, Electronic lock. Door lock. Access control.
