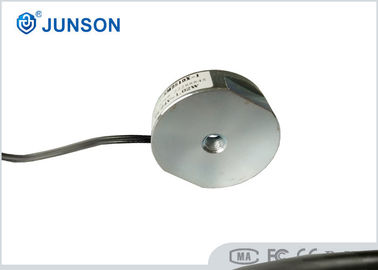

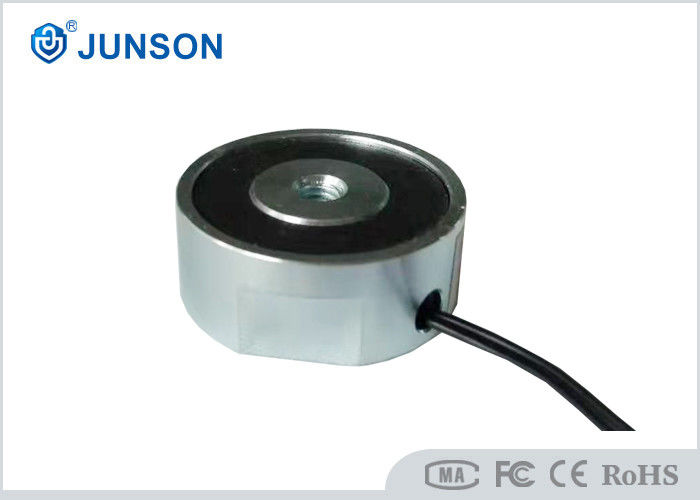

Steel Round Housing JS-EM25 IP 54 Electronic Cabinet Lock

Steel Round Housing JS-EM25 IP 54 Electronic Cabinet Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS
Model Number: JS-EM25

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Dimension: Dia 25 * 10mm Holding Force: 6kg
Insulation Class: B Class Voltage: 24 VDC
Working Type: Wooden Door, Metal Door Of Small Locker, Auto. Equipment., Materials: Fine Copper Coil + Steel Round Housing
Finishes For Magnetic: Blue Zinc IP Rate: IP 54
Life Time: 500,000 Times
High Light:

keypad cabinet lock


digital cabinet locks

Product Description

Small Fail Secure type Electromagnetic lock



Model: JS-EM25






Voltage: 24VDC

Working type: Fail safe, locked when power on

Materials: Fine copper coil + Steel round housing

Suitable for: Wooden door, Metal door of small locker, Auto. Equipment.,

Surface Temp: ≤ 65K

Operating Temp: -5 ~ +55°C

Suitable Humidity: 5~85%(non-condensing)

Finishes for Magnetic: Blue Zinc

IP Rate: IP54

Insulation class: B class

Life Time: 500,000 times

More size can be customized





Basic specification for Each size:


Model Holding force Consumption Current Dimension DC Resistance
JS-EM25 6kg 1W 40mA Dia25 * 10mm 576Ω±10%
JS-EM50 50KG 1.8 W 75mA Dia50 *25 mm 320Ω±10%





Quality Guarantee:


Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.


We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
