Fail Secure Type JS-EM19 IP54 3W Electric Cabinet Lock

Fail Secure Type JS-EM19 IP54 3W Electric Cabinet Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS
Model Number: JS-EM19

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Dimension: Dia 16 * 16mm Voltage: 4.8V-6.5V DC
Current:: 0.5A Consumption: 3W
Holding Force: 1800G Working Type: Fail Secure
Finishes For Magnetic: Nickel Plating IP Rate: IP 54
Life Time: 500,000 Times Insulation Class: B Class
High Light:

magnetic cabinet locks

,

keypad cabinet lock

Product Description

Small Fail Secure type Electromagnetic lock





Model: JS-EM19





This is Fail secure type small electromagnetic device, magnet loss when power on, and magnet to adsorb something no power.

Mostly to use at Auto. Distribution production line, Auto lettle sorting machine and other automation device.

Simple in structure, lower use-cost and easy to install.









Specification:





Dimension: Dia 16 * 16mm

Voltage: 4.8V-6.5V DC

Current: 0.5A

Consumption: 3W

Holding force: 1800G

Working type: Fail secure, locked when power off

Materials: Fine copper coil + Steel round housing

Suitable for: Any kind of automation device ,

Operating Temp: -5 ~ +55°C

Suitable Humidity: 5~85%(non-condensing)

Finishes for Magnetic: Nickel plating

IP Rate: IP54

Insulation class: B class

Life Time: 500,000 times

More size can be customized



Conditions for working:



  • The opposite adsorbate must have flat surface and touch to magnetic
  • The area of adsorbate can not less than magnet
  • The adsorbate should be magnetic conductive materials, like soft steel,
  • Forbid close to high temperature object.

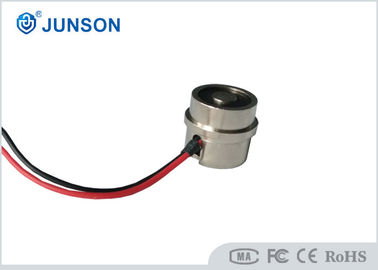

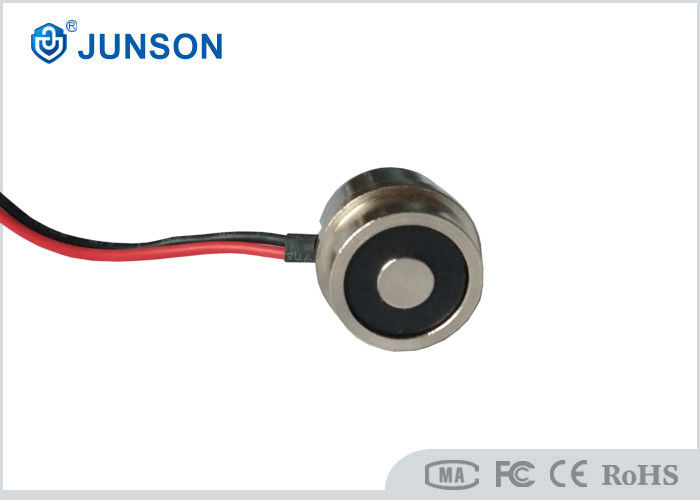

Picture and Diagram





Fail Secure Type JS-EM19 IP54 3W Electric Cabinet Lock 0
