Storage Magnetic Cabinet Locks , Electric Digital Cabinet Locks Fail Secure 1.2W
Product Details:
Place of Origin: | China |
Brand Name: | JUNSON |
Certification: | CE/FCC |
Model Number: | JS-305S |
Payment & Shipping Terms:
Minimum Order Quantity: | 5pcs |
---|---|
Price: | USD3.97-5.00 / pcs |
Packaging Details: | Carton size: 35L*35W*15H (cm) |
Delivery Time: | 2-7 working days after received your payment |
Payment Terms: | T/T, paypal or western Union in advance |
Supply Ability: | 25,000pcs per month |
Detail Information |
|||
Product Name: | Cabinet Lock | Lock Deminssion: | 80L*59W*13H (mm) |
---|---|---|---|
Lockpin Size: | 26mm | Voltage: | 12V |
Current: | 1A | Color: | Black |
Working Type: | Fail Secure | IR Distance: | 30meters |
Temperature Rise: | 45K | Packing: | 100pcs / Cartons |
Highlight: | magnetic cabinet locks,digital cabinet locks |
Product Description

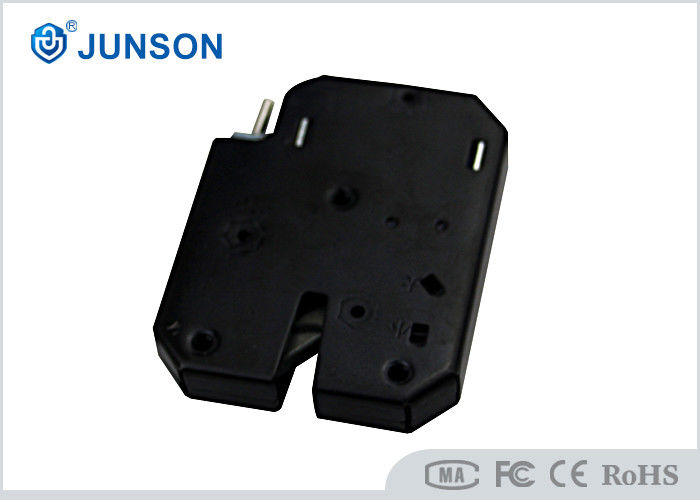

Storage locker lock, Cabinet lock Electric lock
Model: JS-305S
Parameter List
Lock Dimension | 80L*60W*13H (mm) |
Lockpin length | 26mm |
Working Type | Fail secure / locked when power off |
Materials: | Steel housing / fine copper coils |
Voltage | 12V / 24V DC (customized ) |
Working Current: | 1A / 0.5A |
Consuming power | 1.2W |
Signal out | NO/COM for JS-305S |
Open time | 1S |
Continue power on | ≦10S |
Operation temperature | -40℃ -50℃ |
Operation Humidity | 0-80℃ |
Available | All kind of Cabinet |
Weight: | 0.1kg/pcs |
Packing: | 100pcs/ carton |
Carton size: | 35L*35W*15H (cm) |
Lock Size Drawing
Main Feature Advantage:
-
High-strength steel, and fine copper coils, durable
-
Small Volume, light weight, Less power consumption, Easy installation
-
Available for any kind of cabinet, file box.
-
Continues electrify no longer than 10S, to prevent the burn the coil
-
With small with connector, and 20mm wires, easy to connect to the control board.
-
Workable with access control, remote control or special access control power.
-
Metal housing, easy to install in the cabinet door.
-
With Emergency open switch RFIDden, can open by hand in emergency condition
-
Safety, bolt’s holding force at 150kg
-
Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
Field installation Show
