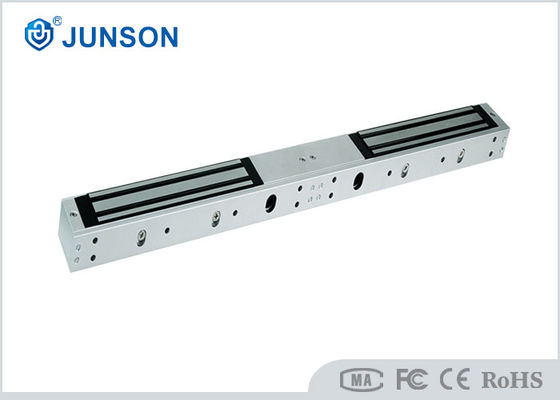

Double 600lbs Electromagnetic Lock 280DS Anodized Aluminum 12/24V With Door Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | JS-280DS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Signal Output: | NO/NC/COM | Standard Carton Dimension: | 350Lx290Wx160H(mm) |
|---|---|---|---|
| Current Draw: | 12V/450mA 24V/240mA | Packing: | 5pcs/Carton |
| Lock Size: | 500L * 49.5W * 26.5H (mm) | Feature: | Power To Lock |
| Voltage: | 12/24V DC+10% | Armature Plate: | 180Lx38Wx13H(mm) |
| Materials: | Aluminum Housing | Finishes For Armature: | Zinc |
| Highlight: | fail secure electromagnetic lock,door electromagnetic lock |
||
Product Description
12 or 24V Double 600lbs Magnetic Lock Anodized Aluminum With Door Sensor
Model:JS-280DS
Shenzhen Junson Security Technology Co. Ltd is engaged in the R&D, production and sales of various famous security systems. We offer magnetic locks, electric locks, electric strikes, electric bolt locks, door locks, electronic locks, lock panic bars, push bar exits and other related items
The description of 600lbs Magnetic Lock:
1. Fine cooper coils, make sure enough holding force at 280kg
2. A grade Aluninum housing, strong enough for installation
3. With LED indicated, RED to open, green to lock
4. With lock sensor feedback
5. Aluminium Anodizing for the plate and housing,
6. Blue zinc plating for the locks
7. 13mm thickness Armature plate,more streng holding force.
8. Stainless steel screws,more durable
9. Imported E shape silicon steel materials
10.Full-automatic electric soldering, to make sure E shape lock body smoothly
The specifications of 600lbs Magnetic Lock:
| Lock Dimension: | 500L * 49.5W * 26.5H (mm) |
| Armature plate dimension: | 180Lx38Wx13H(mm) |
| Holding force | 280Kg (600lbs) x 2 |
| Finishes for Armature | Zinc |
| Voltage : | 12 / 24V DC |
| Current : | 12V / 450mA, 24V / 240mA |
| Available bracket | JS-28ZL, JS-28L,JS-28U |
| Signal output: | Dry Contact, NO, NC, COM |
| Finishes for Magnetic | Zinc |
| Surface Temp: | ≦20℃ |
| Materials | Fine copper coil + aluminum housing |
| Operating Temp: | -10℃ - 55℃ |
| Suitable Humidity: | 0-90% (non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Weight: | 4kg |
| Standard Packing: | 5pcs |
| Cartons size: | 29L * 17W * 17H (cm) |
Series for 280kg EM locks:
| Model | +, - power | Lock sensor/LED | Timer | Door sensor | Install hole for lock plate | Single or dual door |
| JS-280 | yes | NO | NO | NO | Dual hole | Single door |
| JS-280S | yes | yes | NO | NO | Dual hole | Single door |
| JS-280TS | yes | yes | 0/3/6/9S | NO | Dual hole | Single door |
| JS-280SG | yes | yes | NO | NO | Single hole | Single door |
| JS-280SF | yes | yes | 0-15S | NO | Dual hole /with buzzer | Single door |
| JS-280SLD | yes | yes | No | yes | Dual hole | Single door |
| JS-280D | yes | NO | NO | NO | Dual hole | double door |
| JS-280DS | yes | yes | NO | NO | Dual hole | double door |
| JS-280DTS | yes | yes | 0/3//6/9S | NO | Dual hole | double door |
Advantage of magnetic lock
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
