12 / 24V DC Electromagnetic Lock 600lbs JS-280SLD Zinc Finishes With Door Lock Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/SGS/ROHS/FCC |
| Model Number: | JS-280SLD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T, PayPal or Western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Magnetic Lock | Application: | Metal, Glass, Or Wooden Door |
|---|---|---|---|
| Holding Force: | 600lbs / 280kg | Feature: | Fail Safe |
| Power Supply: | 12V Or 24V | Signal Out: | NO, NC, Com |
| Armature Plate Finish: | Zinc | Surface Finishing: | Anodized Aluminum |
| Weight: | 2kg/pcs | Finishes For Magnetic: | Zinc |
| High Light: | magnetic security door locks,fail secure electromagnetic lock |
||
Product Description

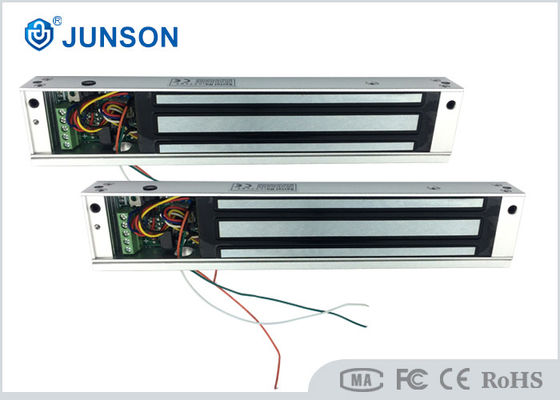

600lbs Commercial Electromagnetic Lock With Door & Lock Sensor
Model:JS-280SLD
Specifications of Electromagnetic Lock 600lbs:
| Lock Dimension: | 250Lx49.5Wx26.5H(mm) |
| Armature plate dimension: | 180Lx38Wx13H(mm) |
| Holding force | 280Kg (600lbs) |
| Finishes for Armature | Zinc |
| Voltage : | 12 / 24V DC |
| Current : | 12V / 450mA, 24V / 240mA |
| Available bracket | JS-28ZL, JS-28L |
| Signal output: | Dry Contact, NO, NC, Com |
| Finishes for Magnetic | Zinc |
| Surface Temp: | ≦20℃ |
| Materials | Fine copper coil + aluminum housing |
| Operating Temp: | -10℃ - 55℃ |
| Suitable Humidity: | 0-90% (non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Weight: | 2kg |
| Standard Packing: | 10pcs |
| Cartons size: | 35L * 29W * 16H (cm) |
Features of Electromagnetic Lock 600lbs:
- Installation type: hanging mounted/surface mounted
- Operating: fail-safe and locked when energized
- Unlocking way: unlock when power-off
- Door type: single door
- Suitable for wooden, metal, glass, stainless steel and fireproof doors
- Wiring: PC board mounted terminal block connections
- Bracket is optional, assembled on hollow door and glass doors
- Made more secure, lock body adopts two screws on each side
- Can be used with access control system, building intercom and fire
- No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
- Three different size magnets available
- Single and double units
- Range of Z & L brackets
Product mounting bracket
Why choose us?
Junson magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.
Advantage of magnetic lock
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty
for relative products. On the contrary, JUNSON will charge extra if repair.
