Single Hole Magnetic Lock Door Security 600lbs JS-280SG With CE Certification
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | JS-280SG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Finishes For Shell: | Anodized Aluminum | Materials: | Fine Copper Coil + Aluminum Housing |
|---|---|---|---|
| Current Draw: | 12V/450mA 24V/240mA | Suitable Humidity: | 0~90%(non-condensing) |
| Application: | Wooden Door, Glass Door, Metal Door, Fireproof Door | Holding Force: | 600lbs / 280kg |
| Feature: | When Power Off Unlocked | Signal Output:: | NO/NC/COM |
| Standard Packing: | 10Pcs/Carton | Armature Plate Size: | 180*38*13 Mm |
| High Light: | magnetic security door locks,fail secure electromagnetic lock |
||
Product Description

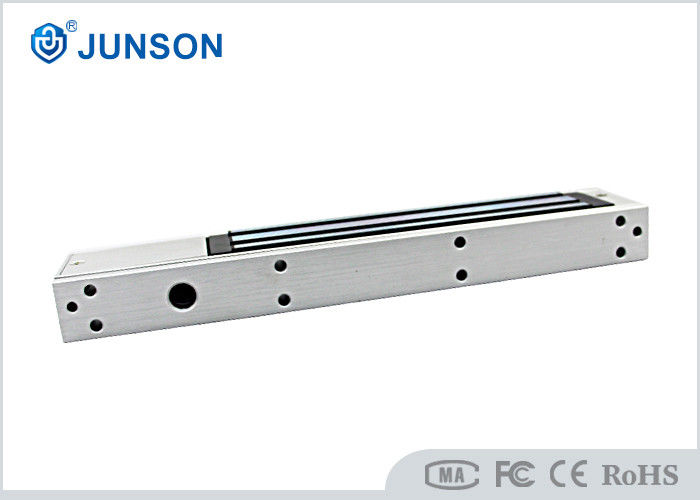

CE Certification 600lbs Single Hole Magnetic Lock With Lock Sensor:
Model:JS-280SG
Shenzhen Junson Security Technology Co. Ltd is engaged in the R&D, production and sales of various famous security systems. We offer magnetic locks, electric locks, electric strikes, electric bolt locks, door locks, electronic locks, lock panic bars, push bar exits and other related items
Specifications of 600lbs Single Hole Magnetic Lock:
| Lock Dimension: | 250Lx49.5Wx26.5H(mm) | |||||
| Armature plate dimension: | 180Lx38Wx13H(mm) | |||||
| Holding force | 280Kg (600lbs) | |||||
| Suitable for | Wooden door, Glass door, Metal door, Fireproof door | |||||
| Voltage | 12 / 24V DC | |||||
| Current | 12V/450mA 24V/240mA | |||||
| Finishes for Shell | Anodized aluminum | |||||
| Available bracket | JS-28U | JS-28ZL | JS-28L | |||
| Signal output: | Dry Contact | NO | NC | COM | ||
| Surface Temp: | ≦20℃ | |||||
| Operating Temp: | -10℃ - 55℃ | |||||
| Suitable Humidity: | 0-90% (non-condensing) | |||||
| Finishes for Magnetic | Zinc | |||||
| Weight: | 2.0kg | |||||
| Standard Packing: | 10pcs | |||||
| Cartons size: | 35L * 29W * 16H (cm) | |||||
More Details of 600lbs Single Hole Magnetic Lock:
- With LED
- Installation type: hanging mounted/surface mounted
- Operating: fail-safe and locked when energized
- Unlocking way: unlock when power-off
- Door type: single door
- Suitable for wooden, metal, glass, stainless steel and fireproof doors
- Wiring: PC board mounted terminal block connections
- Bracket is optional, assembled on hollow door and glass doors
- Made more secure, lock body adopts two screws on each side
- Can be used with access control system, building intercom and fire
- No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
Product mounting bracket
Advantage of magnetic lock
FAQ
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
