Auto Flick Door Electric Combination Cabinet Lock High Stability Solenoid With Mico Switch
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS-304S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | USD3.25 - 5.50 /cps |
| Packaging Details: | 980cartons per 20" container |
| Delivery Time: | 5 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5,0000pcs per month |
|
Detail Information |
|||
| Product Name: | Electric Cabinet Lock | Voltage: | 12V Or 24v DC (customized ) |
|---|---|---|---|
| Current: | 1A / 12V , 0.5A / 24V | Working Type: | Locked When Power Off |
| Open Model: | Auto. Flick Door Immediately When Power On | Color: | Silver |
| Mico Switch: | NO Output, Or NC (customized) | Deminssion Of Lock: | 69.5L*64.5W*13H (mm) |
| Weight:: | 0.16kg/ctn | Packing: | 100cps / Carton |
| Highlight: | magnetic cabinet locks,keypad cabinet lock |
||
Product Description

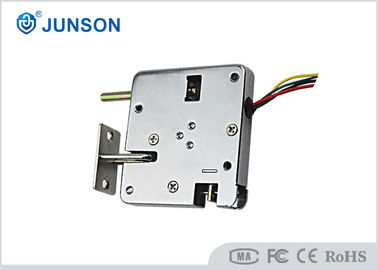

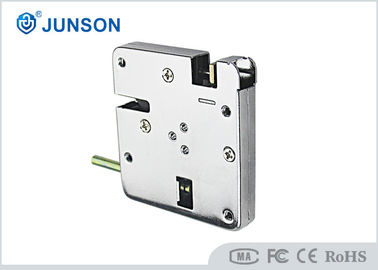

Auto flick the door Electric High stability solenoid lock with mico switch , digital cabinet locks
Model: JS-304S
Junson' Electric cabinet lock passed CE certificate, available in various cabinet, like intelligent storage cabinet, file cabinet, mechanical device.
Specifications:
| Lock Dimension | 69.5L*64.5W*13H (mm) |
| Lockpin length | 29.5mm |
| Working Type | locked when power off |
| Materials: | Steel housing / fine copper coils |
| Voltage | 12V or 24V (customized ) |
| Operation Humidity | 0-80℃ |
| Consuming power | 1.2W |
| Signal out | NO output, or NC output (optional) |
| Open time | 1S |
| Continue power on | ≦10S |
| Operation temperature | -40℃ -50℃ |
| Working Current: | 1A/12V, 0.5A / 24V |
| Temperature raise | 60K |
| Weight: | 0.16kg/pcs |
| Available | intelligent storage cabinet, mechaincal device |
| Packing: | 100pcs/ carton |
| Carton size: | 50L*30W*21H (cm) |
Main Feature:
-
Small Volume, light weight, Less power consumption, Easy installation
-
Standby charging does not exceed 10S
-
Available for various cabinet, like intelligent storage cabinet, mechanical device.
-
With small with connector, and 20mm wires, easy to connect to the control board.
-
With mico switch, for door sensor signal out, NO output, NC need to customize
-
With access control, remote control or special access control capabilities.
-
Metal housing, With Emergency open switch RFIDden, can open by hand in emergency condition
-
Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
-
Safety, bolt’s holding force at 150kg
Electric Cabinet lock Usage
The Assemble workshop for Electric cabinet lock
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years
warranty for relative products.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock. Door lock. Access control.
