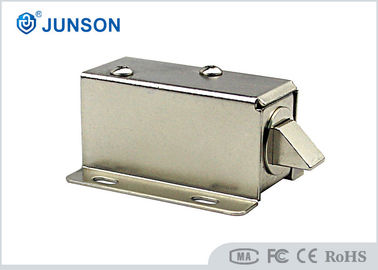

High Stability Solenoid Electric Cabinet Lock 30cm Cables Terminal Storage 24V
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS-303 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD3.18-5.00/cps |
| Packaging Details: | 990 cartons per 20" container |
| Delivery Time: | 3 orking days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 3,000pcs per month |
|
Detail Information |
|||
| Product Name: | Electric Cabinet Lock | Working Type: | Unlock When Power On |
|---|---|---|---|
| Voltage: | 24V | Current: | 0.5A |
| Temerature Raise: | 65K Max. | Materials: | Fine Copper Coil / Metal Case |
| Working Life: | 500,000 Times | Working Time: | Less 1S |
| Weight:: | 0.16kg/pcs | Packing: | 100cps/carton |
| High Light: | magnetic cabinet locks,keypad cabinet lock |
||
Product Description
30cm cables and terminal Storage usage 24V up towards High stability solenoid lock
Model: JS-303
Parameter List
| Lock Dimension | 55L*41W*22H (mm) |
| Lockpin length | 10mm |
| Stroke: | 10mm |
| Working Type | unlock when power on |
| Direction of lockpin | Up towards |
| Materials: | Metal case / fine copper coils |
| Open time | 1S |
| Working Current: | 0.5A |
| Consuming power | 1.2W |
| Voltage | 24V DC |
| Continue power on | ≦15S |
| Operation temperature | -40℃ -50℃ |
| Operation Humidity | 0-80℃ |
| Available | All kind of Cabinet |
| Weight: | 0.1kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 32L*22W*16H (cm) |
Main Feature:
-
High-strength steel, and fine copper coils, durable
-
Small Volume, light weight, Less power consumption, Easy installation
-
With small with connector, and 30mm wires, easy to connect to the control board.
-
Standby power-on time does not exceed 15 seconds to prevent coil burnout
-
Workable with access control, remote control or special access control power.
-
The direction of spring bolt can be changed, with lef
-
Install easily in the cabinet door.

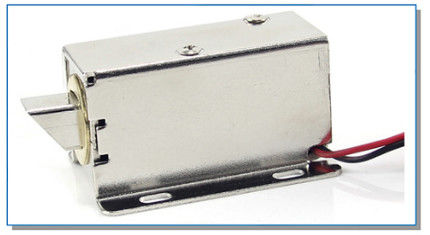

Dimenssion :
Whole Metal instuacture
using A grade steels as case materials,
Electric cabinet lock designed power on momently. with low power consumption design
Fine Copper coils
Voltage in 12V DC, 6V DC or 24V DC, as optional
Long connect cables with terminal, easy to connect with control system.
Easy to change the direction of lockpin
take out the black metal chip under the spring. the lockpin can be take out and turn around to any directly you like.
|
|
