• 500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz
500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz

500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC
Model Number: JS-F653

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days once the payment received
Payment Terms: T/T, PayPal or Western Union in advance
Supply Ability: 5000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: ABS Fingerprint Access Control Idle Current: ≤ 30 MA
Active Current: ≤ 100mA Resolution: 500DPI
Identification Time: ≤1S FAR: ≤0.01%
FRR: ≤0.1% Radio Technology: 13.5MHz
Door Opening Time Delay: 0-255S Access Type: Fingerprint, Card, Pin Cord
High Light:

500DPI Fingerprint Access Controller

,

Wiegand26 ABS Fingerprint Access Controller

,

13.5MHz Fingerprint Door Access Control

Product Description

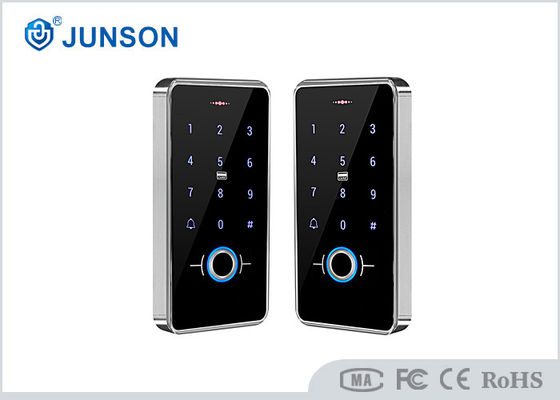

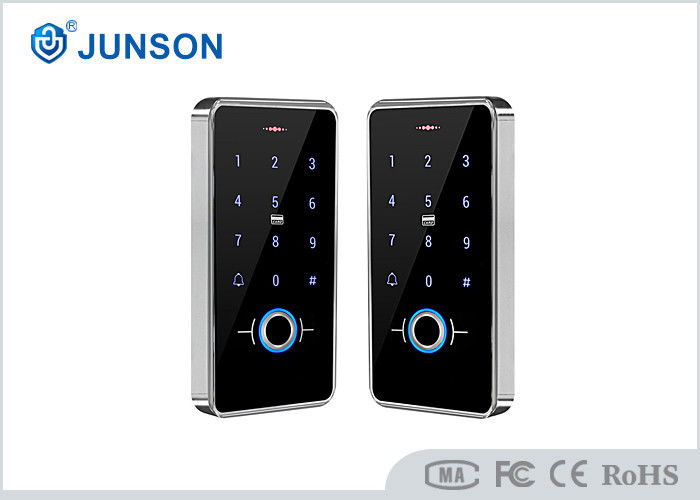

500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz

500DPI Fingerprint Access Controller Waterproof IP68 Mifare one



Model: JS-F653



Parameter List



Materials:

ABS High Quality materials housing

Touch Screen Panel

User Capacity

Fingerprint

Card

Pin cord



120

120

1 team

Operating Voltage

Idle Current

Active Current

12VDC±10%

≤ 30 mA

≤ 100mA

Fingerprint Reader

Resolution

Identification Time

FAR

FRR

Semiconductor capacitor Fingerprint Module

500DPI

≤1S

≤0.01%

≤0.1%

Proximity Card Reader

Radio Technology

Read Range

Industry Standard 26/34bits

13.5M Hz

0 - 10 cm

Wiring Connections

Relay Output, Exit Button, DOTL,

Wiegand26 Output

Door Opening Time delay 0-255S

Relay



One (NO, NC, Common)
Access type: Fingerprint, Card, Pin cord
Waterproof Rate IP68

Environment

Operating Temperature

Operating Humidity



-20℃~70℃ -

20%RH-90%RH

Physical

Dimensions

Unit Weight



Metal Enclosure

L140 × W70 × D16 (mm)

250g

























Shenzhen Junson Security ­Technology Co. Ltd is engaged in the R&D, production and sales of various security systems since 2004. We offer magnetic locks, electric locks, solenoid lock, electric strikes, electric bolt locks, door locks, electronic locks, lock panic bars, push bar exits and other related items.



Production Features:



360-degree comprehensive fingerprint identification, fast identification speed



For fingerprints of different angles, it can be quickly and accurately identified

500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz 0



Support fingerprint, RFID card, password door opening



Support 120 fingerprints or cards, 1 group of passwords to open the door

500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz 1







IP68 waterproof, Can be installed outdoor

With Full PC Glue in the back side, IP68 rating, can work in the weather.

500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz 2



Backlight Keypad

In the dark, you can also enter the password to unlock normally

500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz 3

Easy Installation and Operation

Based on advance technology, fast recognition speed, high sensitivity, Suitable for most major access control solution













Wiring Diagram

This is Standalone access controller, do not need to connected to computer. Just need connect it to Special access control power supply, Electric lock, exit button to work.



500DPI Wiegand26 ABS Fingerprint Access Controller Waterproof IP68 13.5MHz 4
