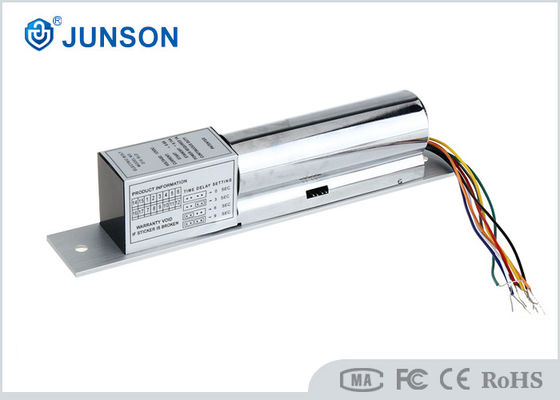

• High Aluminum 8 Wire Electric Bolt Lock With Door State Detetion Output Point
High Aluminum 8 Wire Electric Bolt Lock With Door State Detetion Output Point

High Aluminum 8 Wire Electric Bolt Lock With Door State Detetion Output Point

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC
Model Number: JS-200SLD

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Electric Bolt Door Lock Holding Force: 1000kg
Power Supply: 12V Or 24V Timer Adjuster: 0-9S
Application: Metal, Glass, Or Wooden Door Starting Current: 0.85A
Signal Out: N/A Open Sensor: Magnet Switch Sensor
Material: Zinc Alloy Suitable For: Glass Door,/ Wooden Doors / Metal Doors,Secure Locking Of Furniture (Wooden & Aluminum& Metal Furniture Frame),Access Control,External Installation For Narrow Door
Voltage: DC12V-DC24V Warranty: 2 Years
High Light:

electric drop bolt lock

,

magnetic bolt lock

Product Description


8 Wire Electric Bolt Door Lock With Door State Detetion Output Point





Model: JS-200SLD


Special photoelectricity control technology reduce chance of machcnical defect

Three steps current in electrical control design to achieve low temerature and power saving operation .


Specifications:


Lock Dimension

200L * 34W * 42H (mm)

Face plate dimension

210L * 34W * 3H (mm)

Magnet bracket

90L * 42W * 0.8H (mm)

Lock pin

15.5mm Dia, Stainless steel, out throw 15mm

Holding force

1000kg

Voltage

12V DC  /  24V DC (customized)

Current

Start current 0.8A, standby current: 0.09A

Available bracket

JS-701D, JS-101D, JS-100D

Auto relock jumper

Adjustable 0-9s

Induction Distance

8mm

Surface Temp

 ≦10℃, low temperature

Operating Temp

-10℃ - 55℃

Suitable Humidity

0-90% (non-condensing)

Finishing for lock

High Aluminum, Carrulous Line

Weight

0.9kg

Standard Packing

10pcs

Cartons size

53L * 30W * 14H (cm)


Description :


1 .  Fail safe , Power to lock
2 .  Low Temperature , safe & Durable .
3 .  Low Power, Environmental Protection .
4 .  Special photo-electricity control,three steps current application .
5 .  Long Life with 500000 cycles .
6 .  MOV Provides Reverse Current Protection.
7 .  Superior Strength Aluminum Alloy , Solid Stainless Steel Bolt .
8 .  Double protection for loading current .
9 .  Certificate : CE&MA
10 .  Photo-electricity Control,Low Temperature ,
A :  The  Low Current is Changed immediately
B :  When door frame does not coincide with door leaf , door leaf against the bolt , then the electric bolt will start the low-power function to bring low temperature .
C :  The Photo-electricity Control Technology , prevent the mechanical defect .

High Aluminum 8 Wire Electric Bolt Lock With Door State Detetion Output Point 0

High Aluminum 8 Wire Electric Bolt Lock With Door State Detetion Output Point 1
High Aluminum 8 Wire Electric Bolt Lock With Door State Detetion Output Point 2







Quality Guarantee :

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty
for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our
service center.

We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
 Electronic lock. Door lock. Ac
