Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock

China Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock supplier
Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock supplier Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock supplier Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock supplier Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock supplier

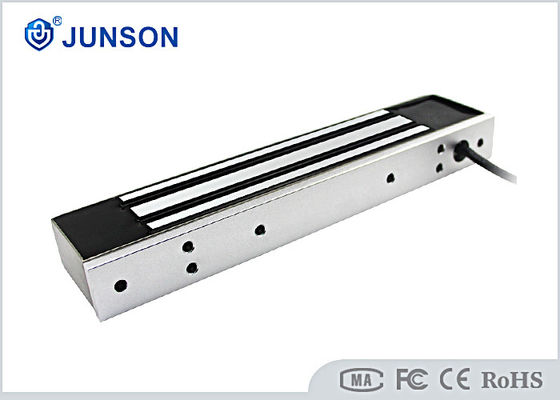

Large Image :  Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-280W

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Contact Now
Detailed Product Description
Product Name: Magnetic Lock Armature Plate Finish: Zinc
Current Draw: 12V/480mA 24V/240mA Surface Finishing: Anodized Aluminum
Application: Wooden Door, Glass Door, Metal Door, Fireproof Door Holding Force: 600lbs / 280kg
Feature: Fail Safe Power Supply: 12V Or 24V

Waterproof IP67 Maglock 600LBS Suitable For Outside Door





JS-280W single door magnetic lock is for glass door, wooden door, fireproof door, sliding door and metal door. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.





Specifications:



Lock Dimension:

222Lx47Wx26H(mm)

Armature plate dimension:

190Lx45Wx13H(mm)

Holding force

280Kg (600lbs)

Voltage :

12 / 24V  DC

Current :

12V/480mA 24V/240mA

Available bracket

JS-280U, JS-280ZL, JS-280L

Signal output:

Dry Contact, NO, NC, Com

Surface Temp:

 ≦20℃

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishing for lock and Armature

 Zinc

Weight:

2.0kg

Standard Packing:

10pcs

Cartons size:

35L * 29W * 15H (cm)



Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock

Description:

1. Fail safe, Power to lock

2. Collinear Load Test 280kg, 600pounds

3. Dual Voltage 12 or 24 VDC(optional)

4. The Standard Voltage is 12VDC when Finished

5. MOV Provides Reverse Current Protection

6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)

8. High Strength Material(kasolite steel), Anodized Aluminum Housing

9. Design with no Mechanical Bolt

10. Increase the holding Force, Dual Insulative Hosing







Outside Door Electromagnetic Lock 600LBS IP67 Waterproof Single Door Magnetic Lock











FAQ



Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.



Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference



Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.



Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!



Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!



Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
