600 Lbs Single door Electric Magnetic Lock with mortise mount/ Embedded installation-JS-280HS

China 600 Lbs Single door Electric Magnetic Lock with mortise mount/ Embedded installation-JS-280HS supplier

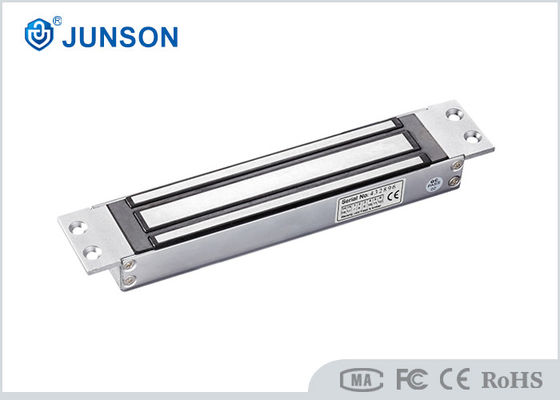

Large Image :  600 Lbs Single door Electric Magnetic Lock with mortise mount/ Embedded installation-JS-280HS

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-280HS

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Detailed Product Description
Product Name: Magnetic Lock Armature Plate Finish: Zinc Alloy
Current Draw: 12V/480mA 24V/240mA Surface Finishing: Anodized Aluminum
Application: Wooden Door, Metal Door, Fireproof Door Holding Force: 600lbs / 280kg
Feature: Fail Safe Power Supply: 12V Or 24V

600 Lbs Single door Electric Magnetic Lock with mortise mount/ Embedded installation-JS-280HS





Junson is very competitive in electric locks industry for access control system. Comparing to other factories in China, we have some advantages as follow



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door..





Specifications:



Lock Dimension:

227Lx38Wx28H(mm)

Armature plate dimension:

185Lx38Wx12H(mm)

Holding force

280Kg (600lbs)

Voltage :

12 / 24V  DC

Current :

12V/480mA 24V/240mA

Signal output:

Dry Contact

Surface Temp:

 ≦20℃

Operating Temp:

-10℃ - 55℃

Suitable Humidity:

0-90% (non-condensing)

Finishing for lock and Armature

 Zinc Alloy

Weight:

2.0kg

Standard Packing:

10pcs

Cartons size:

35L * 30W * 16H (cm)





Description:

1. Fail safe, Power to lock

2. Collinear Load Test 280kg, 600pounds

3. Dual Voltage 12 or 24 VDC(optional)

4. The Standard Voltage is 12VDC when Finished

5. MOV Provides Reverse Current Protection

6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

7. High Strength Material(kasolite steel), Anodized Aluminum Housing

8. Design with no Mechanical Bolt

9. Increase the holding Force, Dual Insulative Hosing







600 Lbs Single door Electric Magnetic Lock with mortise mount/ Embedded installation-JS-280HS







Advantage of magnetic lock

600 Lbs Single door Electric Magnetic Lock with mortise mount/ Embedded installation-JS-280HS

FAQ



Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.



Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference



Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.



Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!



Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!



Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
