Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE
Model Number: JS-RC51

Payment & Shipping Terms:

Minimum Order Quantity: 1 bag / 20 pairs
Price: negotiation
Packaging Details: 20 pairs per bag, 20 bags per carton
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 500,000pcs per week
Contact Now
Detailed Product Description
Product Name: Metal Reed Switch Materials: Zinc Alloy Housing
Suitable: Metal Door Or Window Dimension:: 32 * 15 *8 Mm
Max. Voltage:: 100V DC Max. Loading Current:: 500mA
Packing:: 20 Pairs Per Bag Packing Weight :: 0.8kg / Bag

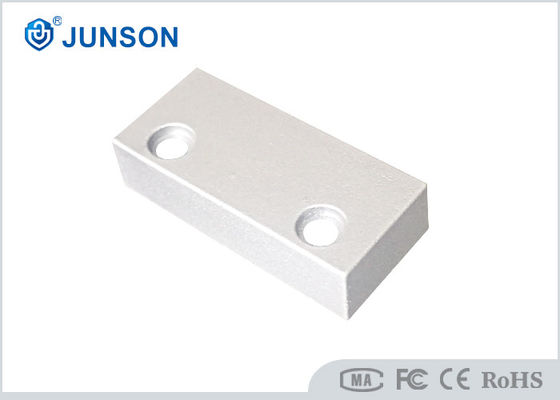

Wired Metal door contactor sensor, reed switch, Suitable for Iron door or window



Model:  JS-RC51



Parameter :





Dimension 32Lx15Wx8D mm
Wired output side out
senser alarm type No,
Materials:  Zinc Alloy
Finishing:   Plating
Color:   Silver Grey
Withstand voltage : 100 V DC
Loading current: 500mA
Sensor feedback distance: 20mm ± 6mm
Cables: 1007UL #24AWG 260mm
Temperature -25°~70°C
Humidity -10~85%
Packing: 20pcs per bag
Bag weight: 0.8Kg / bag
Cartons: 20 bags per cartons
Carton Weight: 16kg







Feature:



1. Door sensor feedback, reed swtich, working with access control system

2. Suitable for worden door, windows

3. Zinc Alloy housing, Silver Grey plating,  waterproof, firproof

4. 18mm sensor distance, high sensitivity

5. NO type, NC type or NO/NC type optional

6. Can be used in access control or alarm system





Dimension Drawing:



500mA Magnetic Read Switch , Magnetic Door Alarm Sensors Plating Finishing



500mA Magnetic Read Switch , Magnetic Door Alarm Sensors Plating Finishing



500mA Magnetic Read Switch , Magnetic Door Alarm Sensors Plating Finishing





Shipping Instruction:



         1. All goods will be packed in paper cartons, and weight do not over 18kg,

         2. We promise to send cargos within 3 days upon receipt the payment (except customized productions)

         3. All goods will send by express courier for small quantities,  bigger one will be sent by air or sea,  details, plz check with seller





Quality Guarantee:



        Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years

warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,

please browse our service center.
