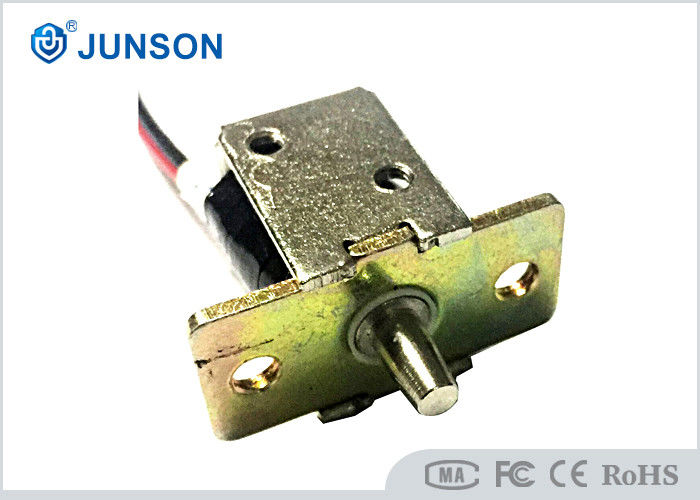

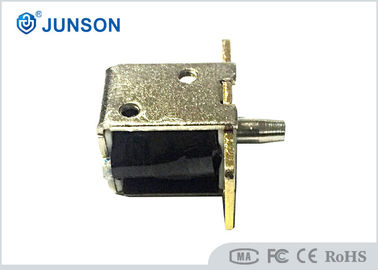

Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole

China Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole supplier
Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole supplier Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole supplier

Large Image :  Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-307

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: US$2.93 - 5.00 /cps
Packaging Details: 200pcs / carton
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 5,0000pcs per month
Contact Now
Detailed Product Description
Product Name: Embeded Cabinet Lock Stroke: 4.3mm
Pole Size: 28.3mm Voltage:: 12V
DC Resistance: 28Ω Insulation Class: A Class
Temperature Rise: 65K Max. Life: 500,000 Times
Weight: 0.05kg / Cps Carton Size: 32L*22W*16H (cm)



Smallest Intelligent embedding Electric cabinet lock with 4.3mm stroke pole



Model: JS-307



Junson Security made variety of Electric cabinet lock, soleniod lock for all kind of storage cabinet lock, intelligent locker.



Specifications:



Lock Dimension 29*20*16mm
Stroke  4.3mm
Fail secure   locked when power off
Lock pole length 28.3mm , Round
Materials  Fine copper coils
Voltage 12V DC
Working Current: 0.54A
Consuming power 4.8W
DC Resistance 28Ω±10% at 20℃
Duty cycle Electrify 25%
Open time 1S
Continue power on ≦15S
Operation temperature -5℃ -55℃
Operation Humidity 5-85℃
Available storage cabinet lock, mailbox, express locker
Weight: 0.05kg/pcs
Packing: 200pcs/ carton
Carton size: 32L*22W*16H (cm)





Electronic characteristics



1. Holding force:  stroke 0mm≥300gf,    stroke 5mm≥80gf

2. Residual magnetism: After DC 12V applied be return at weight of ironrod 5gf (prependicular direction )

3. Insulation resistance: Between coil and frame Dc 500V normal temperature /humidity, 100MΩ

4. Withstand Voltage: Between coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA

5. Temperature rise: After DC12V applied by resistance method 65 deg Max

6. Life: Repetitious operation for 0.5 million cycle (continuous at DC12V)

7. Lead-wire strength: adding 0.5kgf (random direction) not chip off



Lock Size drawing:



Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole

Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole

Smallest Intelligent embedding Electric Cabinet Lock with 4.3mm stroke pole



Why Choose JUNSON:



 1. Junson security specail made all kindly of locks, like magnetic lock, bolt lock, soleniod lock since 2004,



 2. Junson security have strict quality control system during  materials, production and leaving factory



 3. All productions will be given 3 years warranties, and whole life technical supporting
