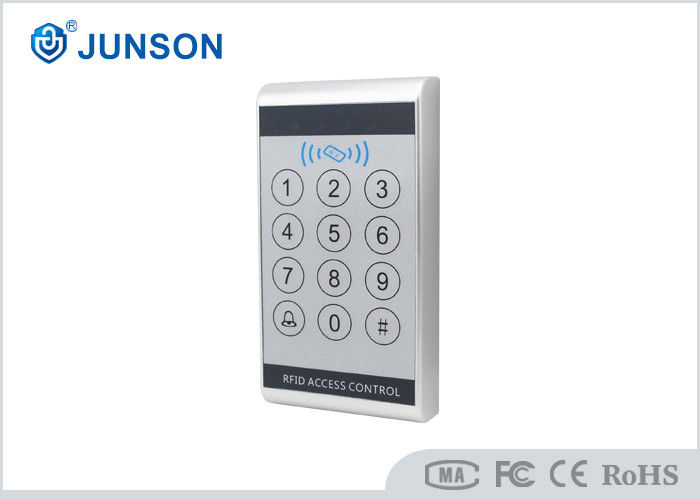

Waterproof Proximity RFID Access Control System Controller Card Reader
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-K315M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | T/T, paypal or western Union in advance |
|
Detail Information |
|||
| Product Name: | Standalone Access Control | Waterproof Rate: | IP68 |
|---|---|---|---|
| Materials: | Plastic Housing | Working Voltage: | DC 12V |
| Static Current: | ≤60 MA | Color: | Sliver |
| Card Quantity: | 800 Pieces | RF Card Type: | EM ID Or Mifare Card |
| High Light: | rfid door lock access control system,rfid gate access control system |
||
Product Description
Waterproof Proximity RFID Access Control System Controller Card Reader
It is an effective non-contact AIO access controller with advantages such as high quality , high security , sensitively and response quickly . It is widely used in apartment , office building , mansion , container,and warehouse etc.
Description :
1 . IP68 and Zinc Alloy material access control
2 . Anti-vanda , waterproof & back-lit metal key buttons, slim , elegant and rugged design ,
3 . Lock control delay , unlock duration, alarm delay;
4 . Third part electric lock , alarm, door sensor , exit button and doorbell for access control interface .
5 . Support wiegand input and output , can work with reader or work with control board as a reader
6 . Simple programming , Easy Operation
7 . Can setting cards via management card or on keypad
8 . Data is protected even after power failure
9 . With back highlight
10 . Work with magnetic lock , electric lock , exit button , door sensor , bell , alarm , slave reader
Specifications :
|
Dimension |
113*60*17mm |
|
Materials |
Plastic housing |
|
Voltage |
12V DC |
|
Current
|
Unlock max current: 1.5A |
|
Static current : 60mA max |
|
|
User capacity |
800 pieces |
|
Frequency distance |
3-6cm |
|
Card type |
IC or ID one card |
|
Color option |
Sliver |
|
Surface Temp |
≦20℃ |
|
Operating Temp |
-20℃ - 40℃ |
|
Suitable Humidity |
20-40% (non-condensing) |
|
Open door method |
Card, password , card+password |
|
Door relay time |
1-99S |
|
Weight |
0.45kg |
|
Standard Packing |
30pc |
|
Cartons size |
54L * 20W * 30.5H (cm) |
Quality Guarantee :
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty
for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our
service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
Electronic lock. Door lock. Access control.
