Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock

Good quality Electric Bolt Lock for sales
Good quality Electric Bolt Lock for sales
This is our first meeting in Junson company, Amy and Jeremy are very professional. we will start to develop our new production in coming soon.

—— Mr. Ariel

Very glad for your special supporting on access control system, the productions are in good quality. very nice to see you guys in expro.

—— Mr.Chris

Good team, I'd like to work with your team at a long time, quickly feedback, sepcail solution suggestion.

—— Mr.Florian

I'm Online Chat Now

Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock

China Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock supplier
Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock supplier Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock supplier Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock supplier Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock supplier

Large Image :  Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC
Model Number: Js-160A

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Contact Now
Detailed Product Description
Timer Adjuster: 0-9S Product Name: Electric Bolt Lock
Application: Frameless Glass Door Time: 0-6s
Type: Fail Safe Signal Out: N/A
Starting Current: 12VDC/1.3A , 24VDC/0.5A Open Sensor: Magnet Switch Sensor
Material: Zinc Alloy Voltage: DC 12V
Finish: Surface Finished

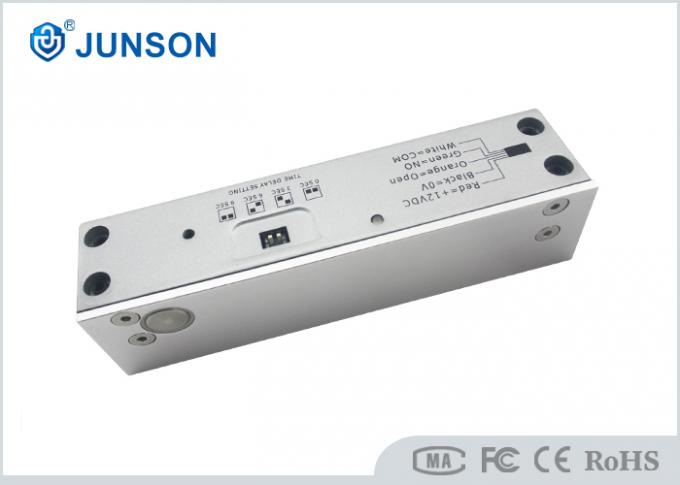

Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock

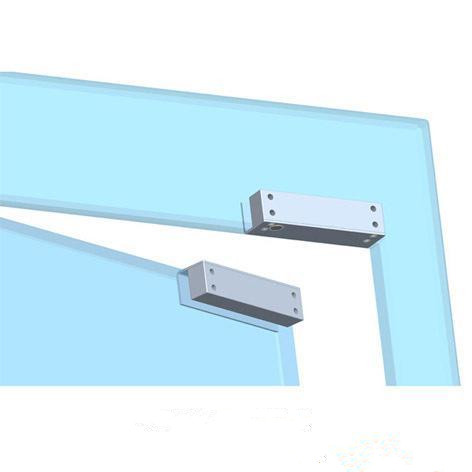

Electric Drop Bolt Door Lock is a fail secure electric bolt suitable for glass door , wooden door , metal door . We supply integrity equipment to collocate with fully frameless glass door  . Build-in Photoelectricity control and low tempreture design .




Specifications :



Face plate dimension

150Lx43Wx37H(mm)

Bolt diameter

14mm

Throw out

12mm

 working current

 0.15A

Door sensor

NO/COM output

Voltage

12V DC  /  24V DC (customized)

Starting current

1.1A

Available bracket

JS-701D, JS-101D, JS-100D

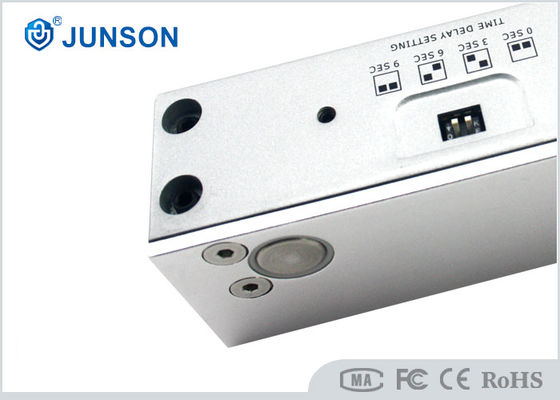

Auto relock jumper

Adjustable 0-9s

Induction Distance

8mm

Surface Temp

 ≦10℃, low temperature

Operating Temp

-10℃ - 55℃

Suitable Humidity

0-90% (non-condensing)

Finishing for lock

High Aluminum, Carrulous Line

Weight

1.3kg

Standard Packing

10pcs

Cartons size

53L * 30W * 14H (cm)


Description :


1 . Fail Safe : unlock when power off
2 . Low Temperature , safe & Durable.
3 . Low Power , Environmental Protection.
4 . Special photo-electricity control , three steps current application .
5 . Long Life  with 500000 cycles .
6 . MOV Provides Reverse Current Protection.
7 . Superior Strength Aluminum Alloy , Solid Stainless Steel Bolt .
8 . Double protection for loading current .
9 . Certificate : CE&MA
10 . Photo-electricity Control , Low Temperature ,
A : The  Low Current is Changed immediately .
B : When door frame does not coincide with door leaf , door leaf against the bolt , then the
       electric bolt will start the low-power function to bring low temperature .
C : The Photo-electricity Control Technology , prevent the mechanical defect .

Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock
Glass Door Electric Drop Bolt Lock Fail Safe / Stainless Steel Door Bolt Lock

Quality Guarantee :

Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
    We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock, Electronic lock.
