Low Power Mortise Door Lock Self Service Cabinet / Refrigerators Door Applied

Low Power Mortise Door Lock Self Service Cabinet / Refrigerators Door Applied

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC
Model Number: JS-132SL

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Lock Size: 132L*24W*34H (mm) Holding Force: 1000kg
Face Plate Size: 192L*25W*3H (mm) Timer Adjuster: 0/3/6/9S
Open Wires: Open Directly Connected To Button With Black Wire Starting Current: 1.0A
Signal Out: Door Signal, NO/COM Temp Rise: ≦10℃
Face Place Material: 304 Stainless Steel Induction Distance: 8mm
Voltage: DC12V / Or 24V To Be Customized Warranty: 2 Years
High Light:

electric drop bolt lock

,

magnetic bolt lock

Product Description

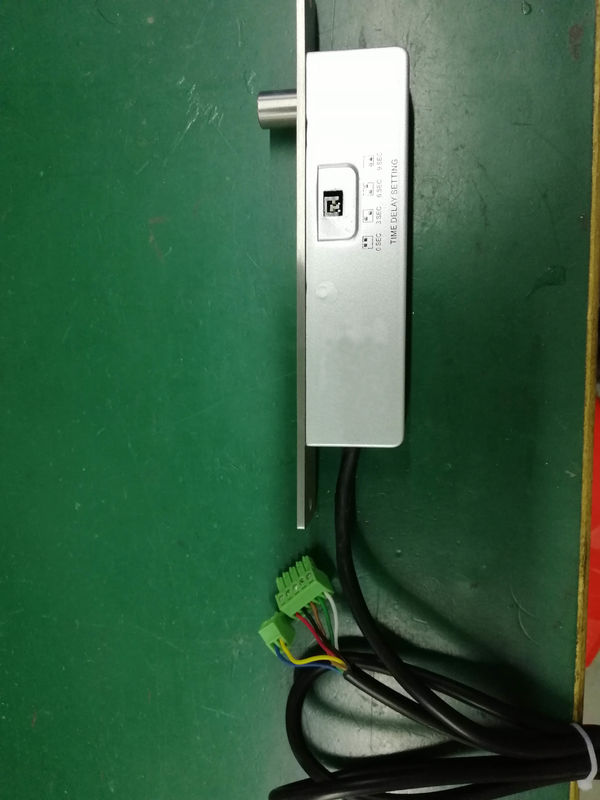

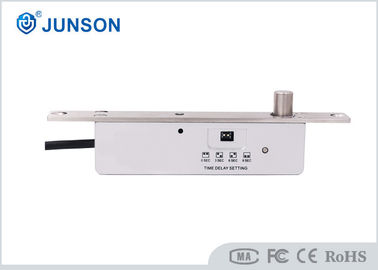

Fail Secure Electric Bolt lock Special for self-service Cabinet / refrigerators door

Model: JS-132SL



Specification:

Fail Secure: lock when power off
Lock body size: 132L*24W*34H (mm)
Faceplate size: 192L*25W*3H (mm)
Material: Zinc alloy and Stainless steel
LED indication Red to open, Green to lock
Magnet bracket: 90Lx 25Wx3H(mm)
Lock pin: 12mmDIA,stainless steel out throw15mm
Voltage: DC12V / 24V (customize )
Current:

Start: 1.1A

Standby: 0.15A

Holding force 1000kg
Lock sensor feedback NO or NC / Com
Door sensor feedback NO / NC /COM
Solenoid: Continuous duty
Auto relock Timer jumper adjustable (0/3/6/9S)
Temp rise: ≦10℃
Induction Distance 8mm
Operating temp: -20~+45℃
Operating Humidity: 0~90%(non-condensing)
Face place material: 3mm thickness stainless steel
Weight: 1kg
Standard Packing: 20pcs.
Carton size: 45.5Lx29Wx22H(cm)



Feature

▶Low Temperature, safe & Durable

▶Low Power, Environmental Protection

▶MOV Provides Reverse Current Protection

▶Fail secure, lock when power off, saving energy.

▶With Led indication, red to open, green to lock

▶Suitable for any of Self-Service Cabinet, Refrigerators.

▶ Can be customized for the length of cables and terminal, to suitable for the terminal in client’s board

CE Certificate by European Union, MA China Public Security office



Low Power Mortise Door Lock Self Service Cabinet / Refrigerators Door Applied 0Low Power Mortise Door Lock Self Service Cabinet / Refrigerators Door Applied 1Low Power Mortise Door Lock Self Service Cabinet / Refrigerators Door Applied 2



Quality Guarantee :


Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years warranty
for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our
service center.

We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt lock,
 Electronic lock. Door lock. Ac
