300lbs Magnetic Security Door Locks Zinc Finishes JS-180 For Access Control
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Operating Temp: | -10~+55°C (14-131F) | Armature Plate: | 130Lx33Wx12H(mm) |
|---|---|---|---|
| Finishes For Magnetic: | Zinc | Surface Finishing: | Anodized Aluminum |
| Application: | Metal, Glass, Or Wooden Door | Standard Packing: | 20pcs/carton |
| Feature: | Power Off To Open | Power Supply: | 12V Or 24V |
| Lock Size: | 170Lx40Wx21H(mm) | Materials: | Fine Copper Coil + Aluminum Housing |
| High Light: | magnetic security door locks,fail secure electromagnetic lock |
||
Product Description

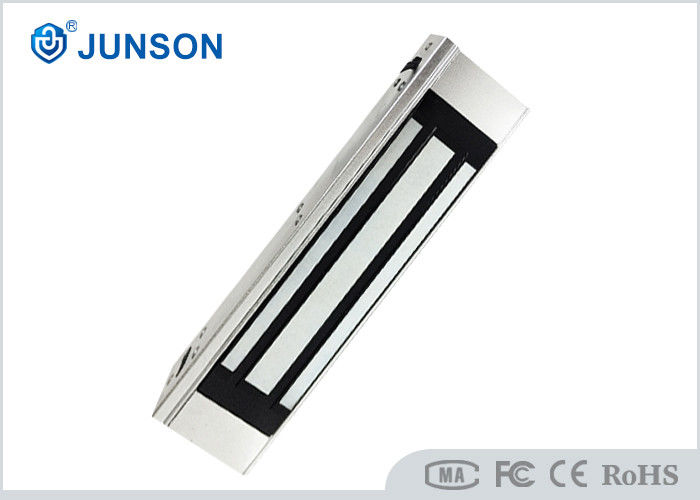

300lbs CE Certification Security Door Magnetic Lock For Access Control
Model:JS-180
Descriptions of 300lbs Magnetic Security Door Locks:
1. Fine cooper coils, make sure enough holding force at 180kg
2. A grade Aluninum housing, strong enough for installation
3. With LED indicated, RED to open, green to lock
4. Aluminium Anodizing for the plate and housing,
5. Blue zinc plating for the locks
6. 13mm thickness Armature plate,more streng holding force.
7. Stainless steel screws,more durable
8. have CE, FCC, Rohs,MA certificate
9.Imported E shape silicon steel materials
10.Full-automatic electric soldering, to make sure E shape lock body smoothly
Specifications of 300lbs Magnetic Security Door Locks:
Lock Dimension: | 170Lx40Wx21H(mm) |
Armature plate dimension: | 130Lx33Wx12H(mm) |
Holding force | 180kg (300lbs) |
Voltage : | 12 / 24V DC |
Current : | 12V / 310mA, 24V / 160mA |
Available bracket | JS-18U, JS-18ZL, JS-18L |
| Materials | Fine copper coil + aluminum housing |
| Finishes for Magnetic | Zinc |
Surface Temp: | ≦20℃ |
| Suitable for | Wooden door, Glass door, Metal door, Fireproof door |
Operating Temp: | -10℃ - 55℃ |
Suitable Humidity: | 0-90% (non-condensing) |
Finishes for Shell | Anodized aluminum |
Weight: | 1.2kg |
Standard Packing: | 20pcs |
Cartons size: | 40L * 28W * 18.2H (cm) |
Why choose us?
Junson Magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
