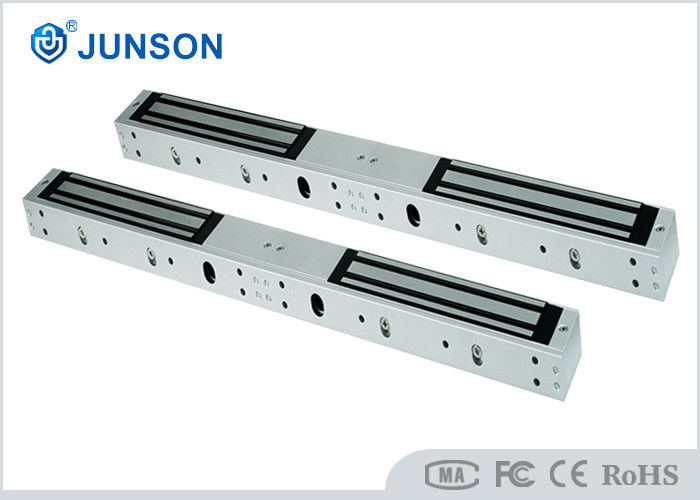

Fail Safe Electromagnetic Lock Delay Timer 600lbs Double Door JS-280DTS Zinc Finishes

Fail Safe Electromagnetic Lock Delay Timer 600lbs Double Door JS-280DTS Zinc Finishes

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-280DTS

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per month
Get Best Price Contact Now

Detail Information

Finishes For Shell: Anodized Aluminum Standard Carton Dimension: 350Lx290Wx160H(mm)
Current Draw: 12V/450mA 24V/240mA Packing: 5pcs/Carton
Weight: 4kg/pcs Feature: Fail Safe
Voltage: 12/24V DC+10% Delay Timer: 0/3/6/9 S
Materials: Aluminum Housing Finishes For Armature: Zinc
High Light:

magnetic security door locks

,

fail secure electromagnetic lock

Product Description



Fail Safe Electromagnetic Lock Delay Timer 600lbs Double Door JS-280DTS Zinc Finishes 0


Delay Timer 600lbs Commercial Double Door Electromagnetic Lock





Model:JS-280DTS Fail Safe Electromagnetic Lock





Shenzhen Junson Security ­Technology Co. Ltd is engaged in the R&D, production and sales of various famous security systems. We offer magnetic locks, electric locks, electric strikes, electric bolt locks, door locks, electronic locks, lock panic bars, push bar exits and other related items







Fail Safe Electromagnetic Lock Delay Timer 600lbs Double Door JS-280DTS Zinc Finishes 0








The specifications of JS-280DTS Fail Safe Electromagnetic Lock:





Lock Dimension: 500L * 49.5W * 26.5H (mm)

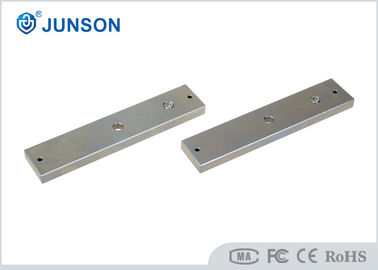

Armature plate dimension: 180Lx38Wx13H(mm)
Holding force 280Kg (600lbs) x 2
Finishes for Armature Zinc
Voltage : 12 / 24V DC
Current : 12V / 450mA, 24V / 240mA
Available bracket JS-28ZL, JS-28L,JS-28U
Signal output: Dry Contact, NO, NC, COM
Finishes for Magnetic Zinc
Surface Temp: ≦20℃
Materials Fine copper coil + aluminum housing
Operating Temp: -10℃ - 55℃
Delay Timer 0/3/6/9 s
Suitable Humidity: 0-90% (non-condensing)
Finishes for Shell Anodized aluminum
Weight: 4kg
Standard Packing: 5pcs
Cartons size: 29L * 17W * 17H (cm)





Series for 280kg EM locks:





Model +, - power Lock sensor/LED Timer Door sensor Install hole for lock plate Single or dual door
JS-280 yes NO NO NO Dual hole Single door
JS-280S yes yes NO NO Dual hole Single door
JS-280TS yes yes 0/3/6/9S NO Dual hole Single door
JS-280SG yes yes NO NO Single hole Single door
JS-280SF yes yes 0-15S NO Dual hole /with buzzer Single door
JS-280SLD yes yes No yes Dual hole Single door
JS-280D yes NO NO NO Dual hole double door
JS-280DS yes yes NO NO Dual hole double door
JS-280DTS yes yes 0/3//6/9S NO Dual hole double door



The description of JS-280DTS Fail Safe Electromagnetic Lock:

1. Fine cooper coils, make sure enough holding force at 280kg


2. A grade Aluninum housing, strong enough for installation


3. With LED indicated, RED to open, green to lock


4. With lock sensor feedback and delay timer(0/3/6/9S)


5. Aluminium Anodizing for the plate and housing,


6. Blue zinc plating for the locks


7. 13mm thickness Armature plate,more streng holding force.


8. Stainless steel screws,more durable


9. Imported E shape silicon steel materials


10.Full-automatic electric soldering, to make sure E shape lock body smoothly





Advantage of magnetic lock







Fail Safe Electromagnetic Lock Delay Timer 600lbs Double Door JS-280DTS Zinc Finishes 2

Fail Safe Electromagnetic Lock Delay Timer 600lbs Double Door JS-280DTS Zinc Finishes 3













FAQ





Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.



Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference



Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.





Quality Guarantee:





Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
