Digital Solenoid Combination Cabinet Lock 120mm Wire Connector Customized Casing

China Digital Solenoid Combination Cabinet Lock 120mm Wire Connector Customized Casing supplier
Digital Solenoid Combination Cabinet Lock 120mm Wire Connector Customized Casing supplier Digital Solenoid Combination Cabinet Lock 120mm Wire Connector Customized Casing supplier

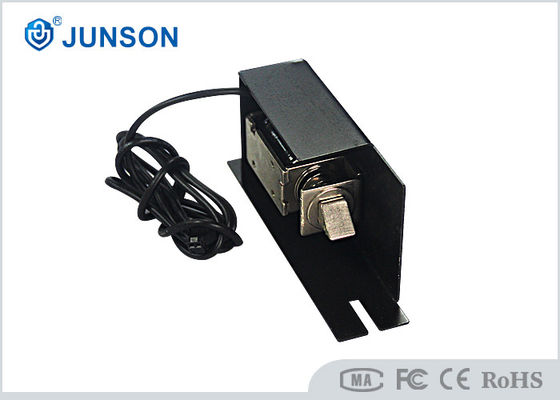

Large Image :  Digital Solenoid Combination Cabinet Lock 120mm Wire Connector Customized Casing

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/FCC
Model Number: JS-3032

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: USD3.85-5.50/cps
Packaging Details: 100pcs/carton, 1300ctns per 20" container
Delivery Time: 2-7 working days after received your payment
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 35,000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Solenoid Lock Voltage: 24V
Current:: 0.85A Dimension: 55L * 22W * 28D Mm
Stroke: 10mm Temperature Raise: 65K Max
Materials: Steel And Fine Copper Color:: Silver
Packing: 100pcs / Carton Carton Size: 32 * 22 * 16 CM
Material: Zinc Alloy Warranty: 1 Year
Sample: Accepted



Customized 12V no casing digital solenoid lock with 120mm wire connector



Model: JS-3032



Junson Security have 14 years experience in Electric lock system and access control system.



Specifications:



Lock Dimension 55L*28W*22H (mm)
Stroke  10mm
Working Type Fail secure
Materials: Steel /  fine copper coils
Voltage  24V DC
Working Current: 0.85A
 Open time 1S
Consuming power 20W
Continue power on ≦10S
Operation temperature -40℃ -50℃
Operation Humidity 0-80℃
Available Special device, file cabinet lock
Weight: 0.12kg/pcs
Packing: 100pcs/ carton
Carton size: 32L*22W*16H (cm)



Main Feature:



1. High-strength steel, and fine copper coils, durable. small Volume, light weight, Less power consumption, Easy installation

2. The direction of spring bolt can be changed, with left, right and up and down towards.

3. Workable with access control, remote control or special access control power.

4. Continues electrify no longer than 10S, to prevent the burn the coil

5. With small  and customized cable connector, easy to connect to the control board.

6. Fine cooper coil, open the lock within 1S when power on,

7.Available for any kind of special device, intelligent cabinet, file box.





More detail picture of lock:



Digital Solenoid Combination Cabinet Lock 120mm Wire Connector Customized Casing

Digital Solenoid Combination Cabinet Lock 120mm Wire Connector Customized Casing











Quality Guarantee:



        Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years

warranty for relative products. and neccessary technocial supporting in lifetime.



FAQ

What’s your Payment?
• PayPal or T/T(Bank transfer) or Western Union also Ali trade Assurance.



What’s your delivery time?
• Around 2~10 working days according to exact order quantity and stock situation.



Your products can be customized?
• Yes,sure. Please talking to sales about your exact requirements.
