IP66 Waterproof RFID Security Access Control System JS-K376-E With LED / Buzzer

China IP66 Waterproof RFID Security Access Control System JS-K376-E With LED / Buzzer supplier
IP66 Waterproof RFID Security Access Control System JS-K376-E With LED / Buzzer supplier IP66 Waterproof RFID Security Access Control System JS-K376-E With LED / Buzzer supplier

Large Image :  IP66 Waterproof RFID Security Access Control System JS-K376-E With LED / Buzzer

Product Details:

Place of Origin: China
Brand Name: Junson
Certification: CE/ROHS/FCC
Model Number: JS-K376-E

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: Packed in carton
Delivery Time: 5-7 days upon receipt the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000/pcs/week
Contact Now
Detailed Product Description
Materials: Zinc Housing Color: Silver
Operating Humidity: 0-95% Frequency Distance: 3-8cm
Voltage: 12-28V DC Interlock Function: Yes
Wiegand Interface: Wg26-37 Open Door Method: EM Card Or EM + HID, 125Khz
Operating Temp: -40℃ - 60℃ Weught: 0.42kg/pcs

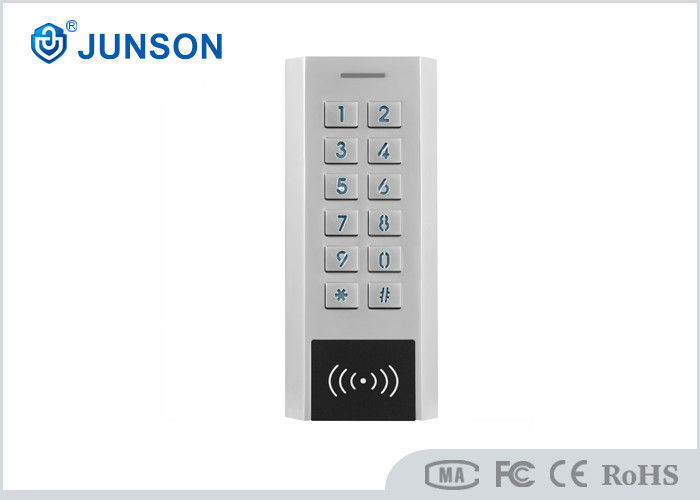

IP66 Waterproof Access Control System Keypad With LED & Buzzer





Model: JS-K376-E



General headquarter of company in Shenzhen, it is the agent of electron lock and door controller. It also has many selling businesses in Guangdong province, and has built one strong region and broad covering network.



Description :


1. IP66 and Metal housing material access control


2. Anti-vanda , waterproof & back-lit metal key buttons, slim ,elegant and rugged design ,



3 . Lock control delay , unlock duration, alarm delay;



4 . Third part electric lock , alarm, door sensor , exit button and do orbell for access control interface .



5 . Fashion Design, all metal key button



     a. Pin length: 4-6 bits

     b. Card type:

    EM version: 125Khz EM card

    EM&HID version: 125Khz EM or HID card



     c. Can be used as Wiegand reader with led and buzzer out

     d. User data can be copy to another device



6. Build in light dependent resister (LDR) for anti tamper



Specifications:



Materials: Zinc Housing
Voltage: 12-28V DC
Current

Open max current: 1.0A

Static current: 35mA max

User Capacity: 1000 users
Frequency distance 3-8cm
Waterproof rate: IP66
Wiegand interface Wg26-37
Relay One, NO/NC/COM
Surface Temp: ≦20℃
Operating Temp -40℃ - 60℃
Operating Humidity 0-95%
Open door method EM Card or EM + HID, 125Khz
Interlock function Yes
Color Silver
Door relay time 0-99S , 5S default





IP66 Waterproof RFID Security Access Control System JS-K376-E With LED / Buzzer





Series Model:





Model Dimension Card Type Weight
JS-K376-E 134*55.5*21mm EM card 0.42kg
JS-K376-E&H 134*55.5*21mm EM & HID card 0.42kg
JS-K377-E 114.5*75*22mm EM card 0.34kg
JS-K377-E&H 114.5*75*22mm EM & HID card 0.34kg
JS-K373-E 148*56*22.5mm EM card 0.65kg
JS-K373-E&H 148*56*22.5mm EM card & HID card 0.65kg
JS-K373-X 148*56*22.5mm EM card & hid card & Mifare card 0.65kg







Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.
