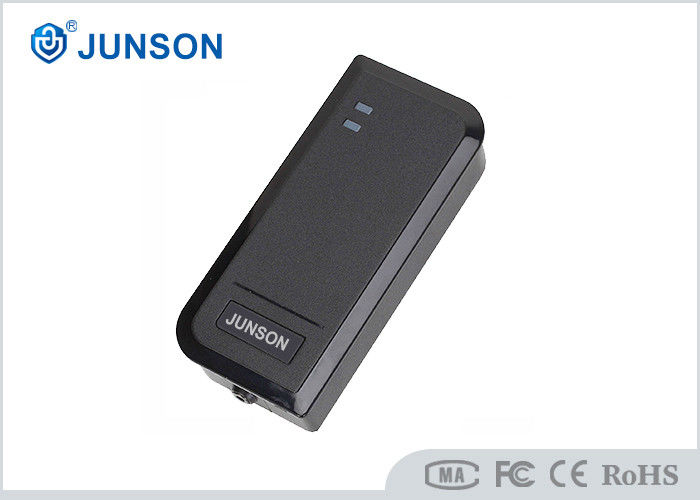

Rfid Card Reader Door Access Control System Kit Waterproof Proximity Wiegand
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/ROHS/FCC |
| Model Number: | JS-S2-X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Waterproof Proximity Wiegand Door Access Control Rfid Card Reader | Voltage:: | 9-24V DC |
|---|---|---|---|
| Surface Temp:: | ≦20℃ | Weight:: | 0.45kg |
| Frequency Distance: | 3-8cm | ||
| High Light: | rfid security access control system,rfid door lock access control system |
||
Product Description
Parameter List
| Materials: | Plastic Housing |
|
Dimension |
103*48*20mm |
| Current |
Open max current: 1.0A Static current: 35mA max |
|
Card Type |
EM +HID card |
| User Capacity: | 1000 users |
| Frequency distance | 3-8cm |
| Wiegand output | Build in Wg26~37 |
| Data copy | Copy user data to another device. |
| Waterproof rate: | IP66 |
| Surface Temp: | ≦20℃ |
| Operating Temp | -40℃ - 60℃ |
| Operating Humidity | 0-95% |
| Open door method | Card, multi-card |
| Interlock function | Yes |
| Door relay time | 0-99S , 5S default |
| Weight: | 0.45kg |
Description :
1. IP66 and ABS housing material access control
2 . Lock control delay , unlock duration, alarm delay;
3. Anti-vanda , waterproof & back-lit metal key buttons, slim ,
elegant and rugged design ,
4 . Third part electric lock , alarm, door sensor , exit button and do orbell for access control interface .
5 .Support wiegand input and output , can work with reader or work with control board as a reader
6 . Data is protected even after power failure
7. Simple programming , Easy Operation
8. Data of user can be copy to another device, easy to add user in new device.
