600Lbs / 280kg Fail Secure Mgnetic Locks For Glass Doors , Strong Tension

600Lbs / 280kg Fail Secure Mgnetic Locks For Glass Doors , Strong Tension

Product Details:

Place of Origin: China
Brand Name: JUNSON
Certification: CE/ROHS/FCC/SGS
Model Number: JS-280

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Packed in carton
Delivery Time: 1-7 working days after received your paymen
Payment Terms: T/T, paypal or western Union in advance
Supply Ability: 30,000pcs per Month
Get Best Price Contact Now

Detail Information

Product Name: Magnetic Lock Armature Plate Finish: Zinc Alloy
Current Draw: 12V/480mA 24V/240mA Surface Finishing: Anodized Aluminum
Application: Wooden Door, Glass Door, Metal Door, Fireproof Door Holding Force: 600lbs / 280kg
Feature: Fail Safe Power Supply: 12V Or 24V
High Light:

magnetic security door locks

,

fail secure electromagnetic lock

Product Description

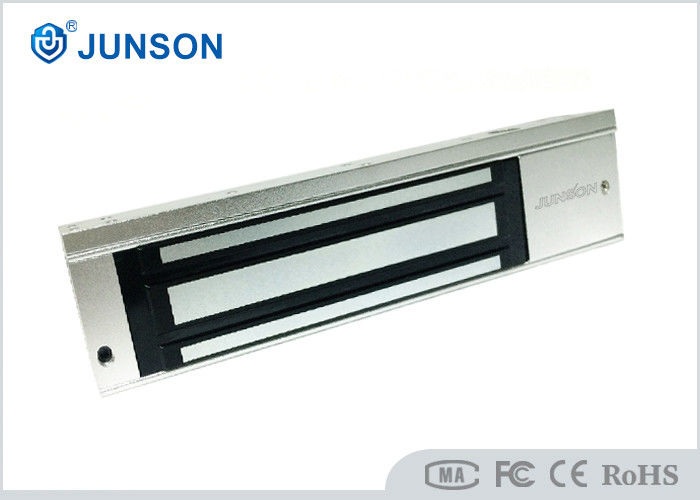

600Lbs / 280kg Fail Secure Mgnetic Locks For Glass Doors , Strong Tension 0




600Lbs / 280kg Fail Secure Electromagnetic Locks For Glass Doors , Strong Tension



Electric Magnetic Lock , Electromagnetic Locks For Glass Doors-280KG 600 lbs/JS-280



Feature



  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors

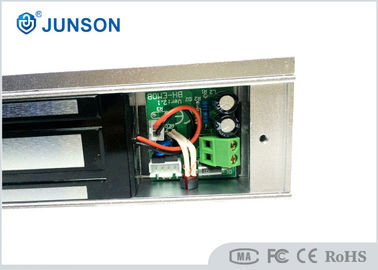

  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire
  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan



The specifications of 600Lbs Fail Secure Mgnetic Locks:



Lock Dimension: 250Lx49.5Wx26.5H(mm)
Armature plate dimension: 180Lx38Wx13H(mm)
Holding force 280Kg (600lbs)
Voltage : 12 / 24V DC
Current : 12V/480mA 24V/240mA
Available bracket JS-28U, JS-28ZL, JS-28L
Signal output: Dry Contact
Surface Temp: ≦20℃
Operating Temp: -10℃ - 55℃
Suitable Humidity: 0-90% (non-condensing)
Finishing for lock and Armature Zinc Alloy
Weight: 2.0kg
Standard Packing: 10pcs
Cartons size: 35L * 29W * 16H (cm)





The description 600Lbs Fail Secure Mgnetic Locks:



1. Fail safe, Power to lock

2. Collinear Load Test 280kg, 600pounds

3. Dual Voltage 12 or 24 VDC(optional)

4. The Standard Voltage is 12VDC when Finished

5. MOV Provides Reverse Current Protection

6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door

7. High Strength Material(kasolite steel), Anodized Aluminum Housing

8. Design with no Mechanical Bolt

9. Increase the holding Force, Dual Insulative Hosing



The design of magnetic locks(Electromagnetic lock) is the same as the electromagnet. By using the principle of electromagnetic, when current passes through the silicon steel sheet, magnetic locks will produce powerful suction, thereby helps to tightly absorb iron plate. Even small current will produce huge magnetic, which can effectively control the door.



Junson magnetic locks adopt international leading production equipment and packaging technology, which not only makes our locks' antioxidant capacity of the surface reach the international leading level, but also helps to increase the holding force (higher 20% than other manufacturers). Now our locks have been sold to more than 60 countries and regions around the world, they are widely used in the important places such as airports, subways, banks, prisons, intelligent buildings, intelligent community and so on, and become convenient, fast and intelligent tool for global users, gain good reputation from the customers.

600Lbs / 280kg Fail Secure Mgnetic Locks For Glass Doors , Strong Tension 1



600Lbs / 280kg Fail Secure Mgnetic Locks For Glass Doors , Strong Tension 2

600Lbs / 280kg Fail Secure Mgnetic Locks For Glass Doors , Strong Tension 3





Advantage of magnetic lock

600Lbs / 280kg Fail Secure Mgnetic Locks For Glass Doors , Strong Tension 4



FAQ



Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.



Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference



Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.



Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!



Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!





Quality Guarantee:



Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information, please browse our service center.



We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt, Electronic lock. Door lock. Access control.
